MAX6950CEE+ - Analog Devices

Description: IC DRVR 7 SEGMNT 5 DIGIT 16QSOP

Download MAX6950CEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

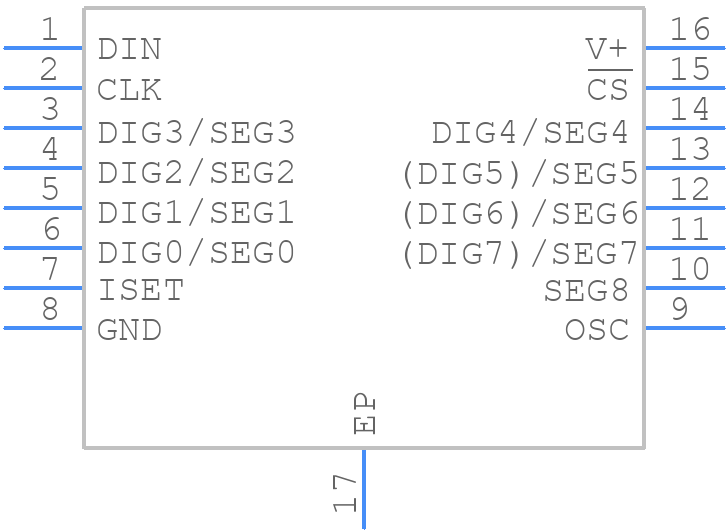

MAX6950CEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6950CEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP-EP_
click to zoom
3D Models
MAX6950CEE+ - Analog Devices - 3D model - Small Outline Packages - 16 QSOP-EP_
click to zoom

MAX6950CEE+ Details

  • Manufacturer Part Number:

    MAX6950CEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    COMMON-CATHODE

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    YES

  • Number of Digits/Characters:

    5-DIGIT

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    8 MHz

MAX6950CEE+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX6950CEE+ involves keeping the power and ground pins separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the MAX6950CEE+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying power to the VCC pin before applying a logic signal to the EN pin. Also, ensure that the EN pin is tied to a valid logic level (either VCC or GND) to prevent the device from entering an unknown state.
  • The MAX6950CEE+ can sink or source up to 100mA per output pin, but the total current should not exceed 500mA. It's also important to ensure that the device is properly heat-sinked to prevent overheating.
  • To troubleshoot issues with the MAX6950CEE+ not turning on or not functioning properly, check the power supply voltage, ensure that the EN pin is properly tied to a valid logic level, and verify that the input signals are within the specified voltage range. Also, check for any short circuits or open circuits on the PCB and ensure that the device is properly soldered.
  • The MAX6950CEE+ is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. It's also important to ensure that the device is properly heat-sinked and that the PCB is designed to handle high temperatures.
