Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2002-11-19
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Additional Feature:
COMMON-CATHODE
Data Input Mode:
SERIAL
Display Mode:
SEGMENT
Interface IC Type:
LED DISPLAY DRIVER
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Multiplexed Display Capability:
YES
Number of Digits/Characters:
4-DIGIT
Number of Functions:
1
Number of Segments:
9
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
MAX6958AAEE+ Frequently Asked Questions (FAQs)
The recommended layout and routing for the MAX6958AAEE+ involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the guidelines provided in the datasheet for pin connections and component placement.
To ensure reliable operation of the MAX6958AAEE+ in high-temperature environments, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be kept below 150°C.
When powering the MAX6958AAEE+, it's essential to ensure a stable and clean power supply. This includes using a low-noise, low-ESR power source, decoupling the power pins with capacitors, and providing a separate power plane for the device. Additionally, the power supply should be able to handle the device's peak current requirements, and the voltage should be within the specified range.
To troubleshoot issues with the MAX6958AAEE+, start by verifying that the device is properly powered and that the input signals are correct. Check the device's output signals using an oscilloscope or logic analyzer, and verify that they match the expected behavior. If the issue persists, check the PCB layout and routing for any errors or noise issues, and ensure that the device is operated within its specified temperature range. If the issue still cannot be resolved, consult the datasheet and application notes for further guidance.
The MAX6958AAEE+ is a high-performance, 16-bit, 100Msps ADC with a unique combination of features, including high-speed conversion, low power consumption, and a compact package. Compared to other similar devices, the MAX6958AAEE+ offers higher speed, lower power consumption, and a more compact package, making it ideal for high-performance, space-constrained applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX6958AAEE+ Overview

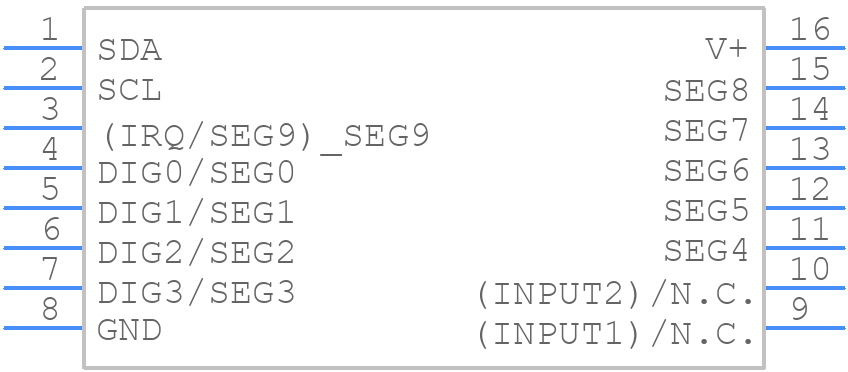

Use the download button to access the MAX6958AAEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX69,
or try a keyword search, such as Display Drivers
