- Part Number MAX6959AAEE+
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 16 QSOP
- Released Date Feb 6, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX6959AAEE+ Details
-
Manufacturer Part Number:
MAX6959AAEE+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
16-QSOP-150_MIL
-
Package Description:
0.150 INCH, EXPOSED PAD, QSOP-16
-
Pin Count:
16
-
Manufacturer Package Code:
16-QSOP-150_MIL
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2002-11-19
MAX6959AAEE+ Frequently Asked Questions (FAQs)
-
The recommended layout and routing for the MAX6959AAEE+ involves keeping the power and ground pins as close as possible to the device, using a solid ground plane, and minimizing the length of the traces between the device and the LEDs. It's also important to keep the clock and data lines as short as possible and to use a low-impedance clock source.
-
To ensure reliable operation of the MAX6959AAEE+ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range, and the maximum junction temperature should not be exceeded.
-
The maximum current that can be sunk by the MAX6959AAEE+ is 100mA per output, with a total device current of 1.2A. However, it's essential to ensure that the device is operated within its specified power dissipation limits to prevent overheating and damage.
-
To troubleshoot issues with the MAX6959AAEE+ not driving the LEDs correctly, check the following: ensure that the device is properly powered, verify that the clock and data signals are correct, check the LED connections and ensure they are properly terminated, and verify that the device is not overheating. Additionally, use a logic analyzer or oscilloscope to verify the signal integrity and timing.
-
Yes, the MAX6959AAEE+ can be used with LEDs of different colors and brightness. However, it's essential to ensure that the LEDs are properly matched to the device's output current and voltage capabilities. Additionally, the device's output current should be adjusted according to the LED's forward voltage and required brightness.
Trust Checks
Expert Contribution
System Verified
Community Approved
MAX6959AAEE+ Overview

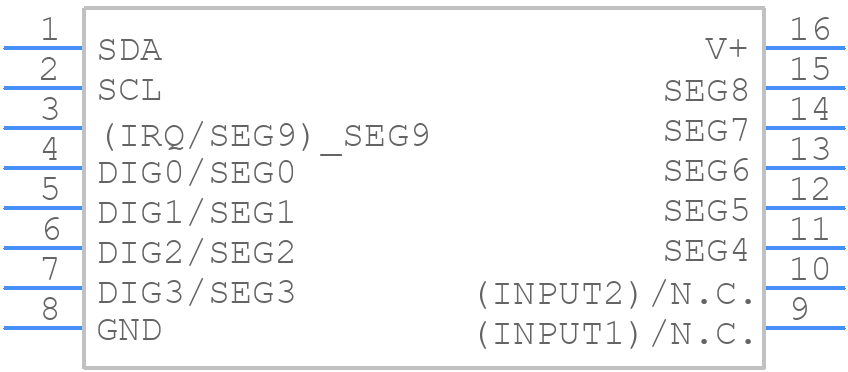

Use the download button to access the MAX6959AAEE+ schematic symbol, PCB footprint, and 3D model.
