MAX6964ATG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6964ATG+ - LED DRIVER W/ INTENSITY CTRL, TQFN-24

Download MAX6964ATG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

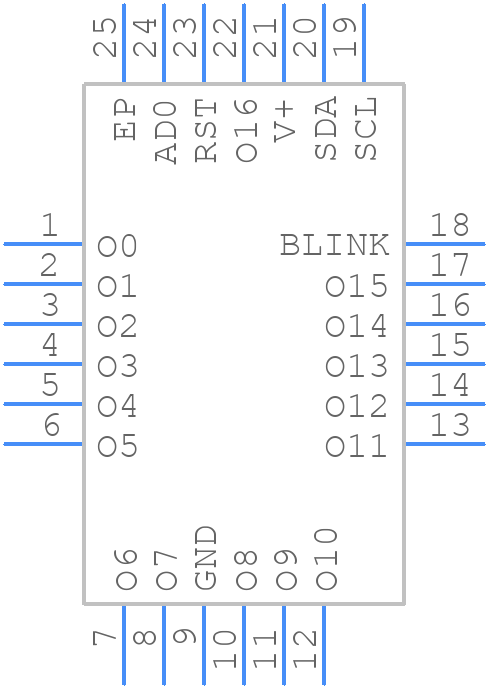

Symbol
MAX6964ATG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6964ATG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4
click to zoom
3D Models
MAX6964ATG+ - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4
click to zoom

MAX6964ATG+ Details

  • Manufacturer Part Number:

    MAX6964ATG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM PITCH, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-02-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    17

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    7 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • fmax-Min:

    0.4 MHz

MAX6964ATG+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX6964ATG+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the guidelines provided in the datasheet for pin connections and component placement.
  • To ensure the MAX6964ATG+ is properly powered and decoupled, use a high-quality power supply with low noise and ripple. Decouple the device with a 0.1uF ceramic capacitor between VCC and GND, and a 10uF electrolytic capacitor between VCC and GND. Place the decoupling capacitors close to the device, and ensure the power supply lines are routed away from the analog signal lines.
  • The MAX6964ATG+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure the device operates within the recommended temperature range for optimal performance and reliability.
  • To troubleshoot issues with the MAX6964ATG+, start by verifying the power supply and decoupling. Check for proper pin connections, and ensure the device is operated within the recommended temperature range. Use an oscilloscope to monitor the input and output signals, and check for noise, distortion, or oscillations. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • The MAX6964ATG+ is a high-reliability device, but it's essential to evaluate its suitability for safety-critical applications. Ensure the device meets the required safety standards and regulations, such as IEC 61508 or ISO 26262. Perform thorough testing and validation, and consider using redundant or fail-safe designs to ensure system reliability and safety.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6964ATG+ Overview

Use the download button to access the MAX6964ATG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX69, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
