MAX6968AUE+ - Analog Devices

Description: Maxim MAX6968AUE+, LED Driver, 3 → 5.5 V, 16-Pin TSSOP

Download MAX6968AUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

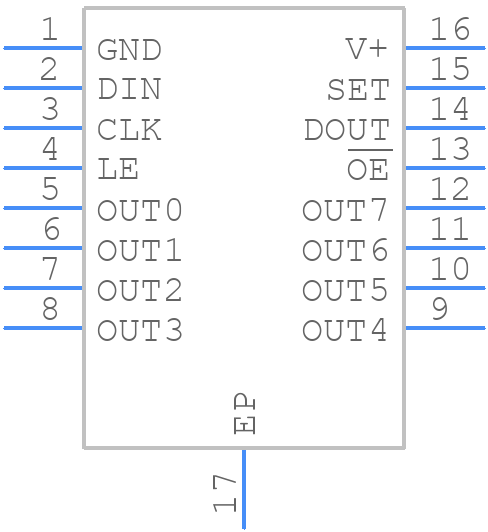

MAX6968AUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6968AUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16E+3
click to zoom
3D Models
MAX6968AUE+ - Analog Devices - 3D model - Small Outline Packages - U16E+3
click to zoom

MAX6968AUE+ Details

  • Manufacturer Part Number:

    MAX6968AUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    4.40 MM, MO-153ABT, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-02-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX6968AUE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX6968AUE+ is to follow a 4-layer stack-up with a solid ground plane on the bottom layer, and to keep the input and output traces as short as possible to minimize noise and EMI. Additionally, it's recommended to use a common-mode choke and a 10uF capacitor on the input lines to filter out high-frequency noise.
  • To ensure the MAX6968AUE+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which is to apply VCC first, followed by VEE, and then the input voltage. Also, ensure that the input voltage is within the specified range and that the device is properly bypassed with capacitors.
  • The maximum operating temperature range for the MAX6968AUE+ is -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX6968AUE+, start by checking the power supply and input voltage to ensure they are within the specified range. Then, check the output voltage and current to ensure they are within the expected range. If the issue persists, check the PCB layout and component placement to ensure they meet the recommended guidelines. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the MAX6968AUE+ is suitable for use in high-reliability or safety-critical applications, such as automotive, industrial, or medical devices. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the required safety and reliability standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6968AUE+ Overview

Use the download button to access the MAX6968AUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX69, or try a keyword search, such as Display Drivers
