MAX6969AWG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX6969AWG+ - LED Driver, 3V to 5.5V input, 16 Outputs, 5.5V/55 mA out, WSOIC-24

Download MAX6969AWG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

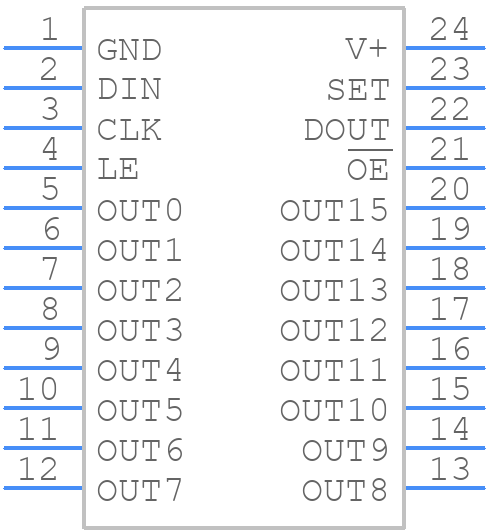

MAX6969AWG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6969AWG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W24+1
click to zoom
3D Models
MAX6969AWG+ - Analog Devices - 3D model - Small Outline Packages - W24+1
click to zoom

MAX6969AWG+ Details

  • Manufacturer Part Number:

    MAX6969AWG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-SOIC_W-300_MIL

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-06-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

MAX6969AWG+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX6969AWG+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure the MAX6969AWG+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying VCC before applying VIN. Also, ensure that the input voltage is within the recommended range and that the device is properly decoupled.
  • The MAX6969AWG+ can sink or source up to 100mA of current per output, but this is dependent on the specific application and the device's thermal performance. It's recommended to check the device's thermal performance and adjust the output current accordingly to avoid overheating.
  • To troubleshoot issues with the MAX6969AWG+, start by checking the power supply and input voltage, then verify that the device is properly configured and initialized. Use an oscilloscope to check the output waveforms and verify that they match the expected behavior. If issues persist, consult the datasheet and application notes for further guidance.
  • The MAX6969AWG+ is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to check the device's thermal performance and adjust the output current accordingly to avoid overheating. Additionally, ensure that the device is properly heat-sinked and that the PCB is designed to handle high temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6969AWG+ Overview

Use the download button to access the MAX6969AWG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX69, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
