MAX711ESE+ - Analog Devices

Description: Maxim MAX711ESE+, Step-Down/Up DC-DC Converter, 700mA, Adjustable, 2.7 → 5.5 V, 16-Pin SOIC

Download MAX711ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

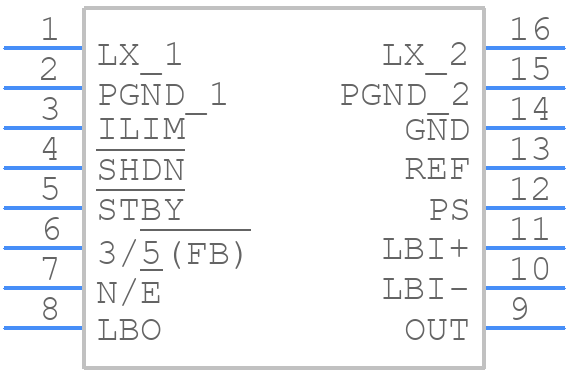

MAX711ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX711ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO
click to zoom
3D Models
MAX711ESE+ - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO
click to zoom

MAX711ESE+ Details

  • Manufacturer Part Number:

    MAX711ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012C, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-07-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    11 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    5.6 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.7 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.25 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX711ESE+ Frequently Asked Questions (FAQs)

  • The MAX711ESE+ is a high-frequency device, so it's essential to follow good PCB layout practices to minimize noise and ensure proper operation. Place the device close to the power supply, use a solid ground plane, and keep the input and output traces short and separate. Also, avoid running digital lines near the analog inputs.
  • To optimize the MAX711ESE+ for low-power operation, use the shutdown pin (SHDN) to disable the device when not in use. Also, consider using a lower reference voltage (VREF) and reducing the clock frequency (CLK) to minimize power consumption. Additionally, use a low-dropout linear regulator (LDO) to power the device, and consider using a power-saving mode if your application allows it.
  • The maximum clock frequency for the MAX711ESE+ is 50 MHz. However, the actual clock frequency you can use depends on your specific application and the quality of your PCB layout. It's recommended to start with a lower clock frequency (e.g., 10 MHz) and gradually increase it while monitoring the device's performance and power consumption.
  • The MAX711ESE+ outputs data in a 12-bit, two's complement format. You'll need to consider this when designing your microcontroller or FPGA interface. You may need to add additional logic to handle the data format, such as sign extension or data alignment, depending on your specific application.
  • The recommended input signal range for the MAX711ESE+ is 0 to VREF (typically 2.5V or 5V). However, the device can handle input signals up to 1.2V above VREF, but with reduced accuracy. It's essential to ensure that your input signal is within the recommended range to maintain the device's accuracy and linearity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX711ESE+ Overview

Use the download button to access the MAX711ESE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX71, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
