MAX712CSE+ - Analog Devices

Description: Battery Management NiCd/NiMH Battery Fast-Charge Controllers

Download MAX712CSE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

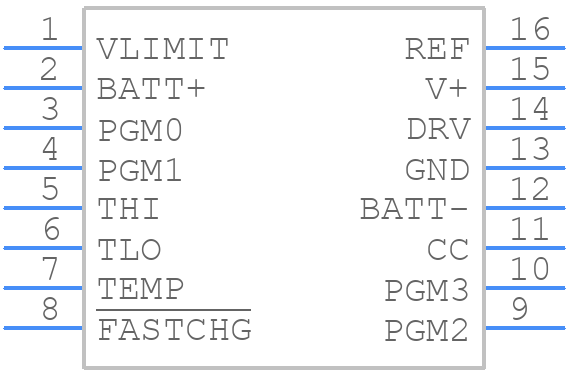

MAX712CSE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX712CSE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Narrow SO height 1.75
click to zoom
3D Models
MAX712CSE+ - Analog Devices - 3D model - Small Outline Packages - 16 Narrow SO height 1.75
click to zoom

MAX712CSE+ Details

  • Manufacturer Part Number:

    MAX712CSE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    BATTERY CHARGE CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX712CSE+ Frequently Asked Questions (FAQs)

  • The MAX712CSE+ is a high-frequency device, so it's essential to follow good layout practices to minimize noise and ensure proper operation. Place the device close to the power source, use short traces, and avoid crossing signal lines over the power plane. Also, ensure that the input and output capacitors are placed close to the device pins.
  • The input capacitor (CIN) should be a low-ESR ceramic capacitor with a value between 1uF to 10uF. The output capacitor (COUT) should be a low-ESR ceramic or tantalum capacitor with a value between 1uF to 22uF. The capacitor values and types may vary depending on the specific application and output voltage requirements.
  • The MAX712CSE+ can handle input voltages up to 28V, but it's recommended to operate within the specified input voltage range of 4.5V to 18V for optimal performance and reliability.
  • To ensure stability, follow the recommended layout and placement guidelines, use the correct input and output capacitors, and ensure that the input voltage is within the specified range. Also, avoid using long traces or wires that can cause oscillations. If oscillations occur, try adding a small ceramic capacitor (e.g., 10nF) between the VIN pin and GND.
  • The MAX712CSE+ is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked, and the ambient temperature is within the specified range.
