MAX712CSE+T - Analog Devices

Description: NiCd/NiMH Battery Fast-Charge Controllers

Download MAX712CSE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

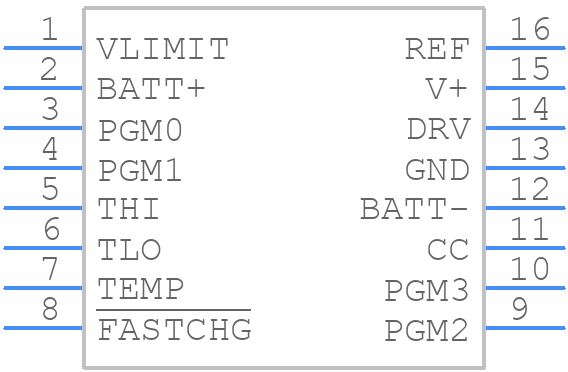

MAX712CSE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX712CSE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16-1
click to zoom
3D Models
MAX712CSE+T - Analog Devices - 3D model - Small Outline Packages - S16-1
click to zoom

MAX712CSE+T Details

  • Manufacturer Part Number:

    MAX712CSE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    BATTERY CHARGE CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX712CSE+T Frequently Asked Questions (FAQs)

  • The MAX712CSE+T is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output capacitor value depends on the specific application requirements, such as the output voltage, output current, and ripple voltage. A general rule of thumb is to choose a capacitor with a value between 10uF to 100uF, with a voltage rating that is at least 1.5 times the output voltage. It is also important to consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) when selecting the output capacitor.
  • The MAX712CSE+T has an absolute maximum input voltage rating of 6.5V. However, it is recommended to operate the device within the recommended input voltage range of 4.5V to 5.5V to ensure optimal performance and reliability.
  • The MAX712CSE+T is rated for operation up to 125°C, but it is recommended to derate the device's performance and reliability at high temperatures. It is also important to ensure that the device is properly heatsinked and that the thermal design is adequate to prevent overheating.
  • To troubleshoot issues with the MAX712CSE+T, it is recommended to follow a systematic approach, including checking the input voltage, output voltage, and output current, as well as verifying the device's pin connections and layout. It is also important to check for any signs of overheating, such as excessive temperature or thermal shutdown. Additionally, it may be helpful to consult the datasheet and application notes, as well as seek support from Analog Devices' technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX712CSE+T Overview

Use the download button to access the MAX712CSE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX71, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
