MAX713ESE+ - Analog Devices

Description: NiCd/NiMH Battery Fast-Charge Controllers

Download MAX713ESE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

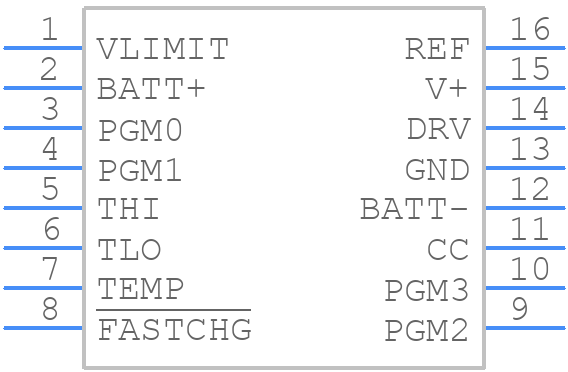

MAX713ESE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX713ESE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16-1
click to zoom
3D Models
MAX713ESE+ - Analog Devices - 3D model - Small Outline Packages - S16-1
click to zoom

MAX713ESE+ Details

  • Manufacturer Part Number:

    MAX713ESE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-01-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    BATTERY CHARGE CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX713ESE+ Frequently Asked Questions (FAQs)

  • The MAX713ESE+ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The output capacitor value for the MAX713ESE+ depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value of at least 10uF to 22uF for most applications. However, it is recommended to consult the datasheet and perform simulations to determine the optimal capacitor value for a specific design.
  • The MAX713ESE+ has an absolute maximum input voltage rating of 18V. However, it is recommended to operate the device within the recommended input voltage range of 4.5V to 15V to ensure optimal performance and reliability.
  • The MAX713ESE+ has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to consult the datasheet and perform thermal simulations to determine the device's suitability for a specific high-temperature application.
  • To ensure the MAX713ESE+ is stable and does not oscillate, it is recommended to follow the datasheet's guidelines for output capacitor selection, input capacitor selection, and PCB layout. Additionally, it is recommended to add a small ceramic capacitor (e.g. 10nF) between the output and ground pins to improve stability.
