MAX7300AAX+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX7300AAX+ - I/O EXPANDER, I2C, 20/28PORT, SSOP-36

Download MAX7300AAX+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

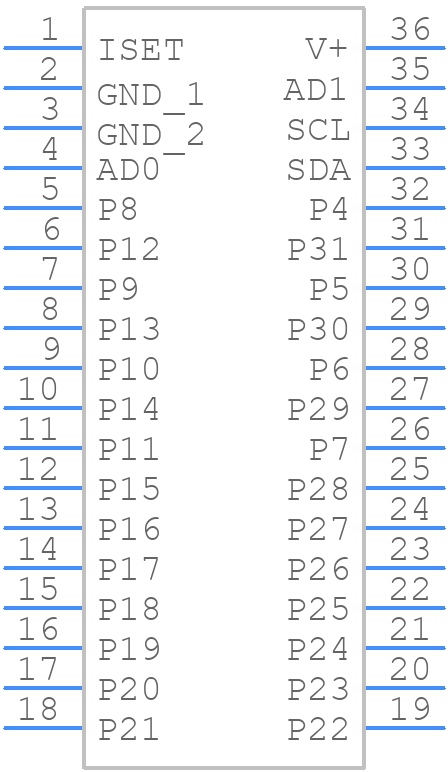

MAX7300AAX+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7300AAX+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 36 SSOP
click to zoom
3D Models
MAX7300AAX+ - Analog Devices - 3D model - Small Outline Packages - MAX 36 SSOP
click to zoom

MAX7300AAX+ Details

  • Manufacturer Part Number:

    MAX7300AAX+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-SSOP_W-7.62_MM

  • Package Description:

    SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-SSOP_W-7.62_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Clock Frequency-Max:

    0.4 MHz

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    28

  • Number of Ports:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    0.28 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7300AAX+ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX7300AAX+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the decoupling capacitors as close as possible to the device's power pins.
  • To properly configure the MAX7300AAX+ for I2C communication, ensure that the SCL and SDA pins are connected to the correct I2C bus lines, and that the device is properly addressed. Common pitfalls to avoid include incorrect pin connections, insufficient pull-up resistors, and incorrect I2C clock frequency.
  • The maximum operating frequency of the MAX7300AAX+ is 400 kHz. Operating the device at higher frequencies can lead to reduced performance, increased power consumption, and potential device damage.
  • To troubleshoot issues with the MAX7300AAX+, start by verifying the device's power supply and clock signals. Check the I2C communication protocol and ensure that the device is properly addressed and configured. Use a logic analyzer or oscilloscope to monitor the device's signals and identify any anomalies.
  • The MAX7300AAX+ has a maximum operating temperature of 125°C. To ensure reliable operation in high-temperature environments, ensure good thermal dissipation by using a heat sink or thermal pad, and avoid exposing the device to extreme temperatures or thermal shocks.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7300AAX+ Overview

Use the download button to access the MAX7300AAX+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX73, or try a keyword search, such as Other Interface ICs
