MAX7300AAX+T - Analog Devices

Description: IC I/O EXPANDER I2C 28B 36SSOP

Download MAX7300AAX+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

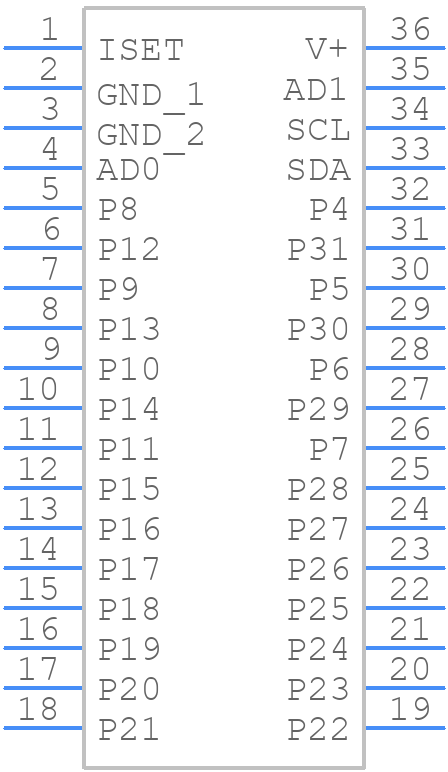

Symbol
MAX7300AAX+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7300AAX+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - A36+4
click to zoom
3D Models
MAX7300AAX+T - Analog Devices - 3D model - Small Outline Packages - A36+4
click to zoom

MAX7300AAX+T Details

  • Manufacturer Part Number:

    MAX7300AAX+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-SSOP_W-7.62_MM

  • Package Description:

    SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-SSOP_W-7.62_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-08-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Clock Frequency-Max:

    0.4 MHz

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    28

  • Number of Ports:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    0.28 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7300AAX+T Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX7300AAX+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and electromagnetic interference (EMI).
  • To ensure proper powering and decoupling of the MAX7300AAX+T, it's recommended to use a high-quality, low-ESR capacitor (e.g., 10uF ceramic capacitor) between the VCC and GND pins, and to place it as close as possible to the device. Additionally, it's recommended to use a separate power supply for the analog and digital sections of the device, and to use a ferrite bead or a pi-filter to filter out high-frequency noise.
  • The maximum operating frequency of the MAX7300AAX+T is 1MHz, and it's recommended to operate the device at a frequency below this to ensure reliable operation and to prevent overheating. Operating the device at a higher frequency can lead to increased power consumption, reduced accuracy, and decreased reliability.
  • The MAX7300AAX+T can be programmed using a 3-wire serial interface (SPI) or a 2-wire serial interface (I2C). The device can be programmed using a microcontroller or a dedicated programming tool, and the programming interface is selected using the MODE pin. The device also has a built-in reset pin that can be used to reset the device to its default state.
  • The MAX7300AAX+T has a maximum operating temperature range of -40°C to +125°C, and it's recommended to operate the device within this range to ensure reliable operation. To ensure reliable operation in high-temperature environments, it's recommended to use a heat sink or a thermal pad to dissipate heat, and to reduce the power consumption of the device by minimizing the operating frequency and using a low-power mode.
