MAX7301AAX+ - Analog Devices

Description: MAX7301AAX+, I/O Expander, 36-Pin SSOP

Download MAX7301AAX+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

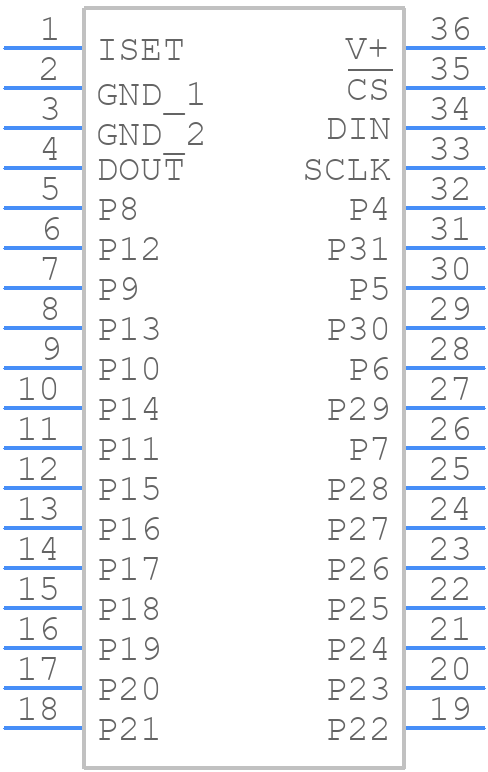

MAX7301AAX+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7301AAX+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 36LSSOP 0.80MM 21-0040RevF1
click to zoom
3D Models
MAX7301AAX+ - Analog Devices - 3D model - Small Outline Packages - 36LSSOP 0.80MM 21-0040RevF1
click to zoom

MAX7301AAX+ Details

  • Manufacturer Part Number:

    MAX7301AAX+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-SSOP_W-7.62_MM

  • Package Description:

    SSOP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-SSOP_W-7.62_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-05-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Clock Frequency-Max:

    26 MHz

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    15.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    28

  • Number of Ports:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    0.27 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7301AAX+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX7301AAX+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the power supply decoupling capacitors close to the device.
  • To ensure the MAX7301AAX+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying the power supply voltage to the device before applying the clock signal. Also, ensure that the device is properly reset by asserting the RESET pin low during power-up.
  • The maximum clock frequency that can be used with the MAX7301AAX+ is 32MHz. However, the device can also operate at lower clock frequencies, and the datasheet provides guidance on the minimum clock frequency required for proper operation.
  • The MAX7301AAX+ can be configured for either I2C or SPI interface by setting the appropriate pins high or low during power-up. For I2C interface, the SCL pin should be tied high, while for SPI interface, the SCK pin should be tied high. The datasheet provides more detailed information on the pin configurations required for each interface.
  • The maximum capacitance value that can be used with the MAX7301AAX+ is 10uF. However, the recommended capacitance value is 1uF to 4.7uF, as specified in the datasheet.
