MAX7311ATG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX7311ATG+ - I/O EXPANDER, I2C, 16BIT, 400KHZ, TQFN24

Download MAX7311ATG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

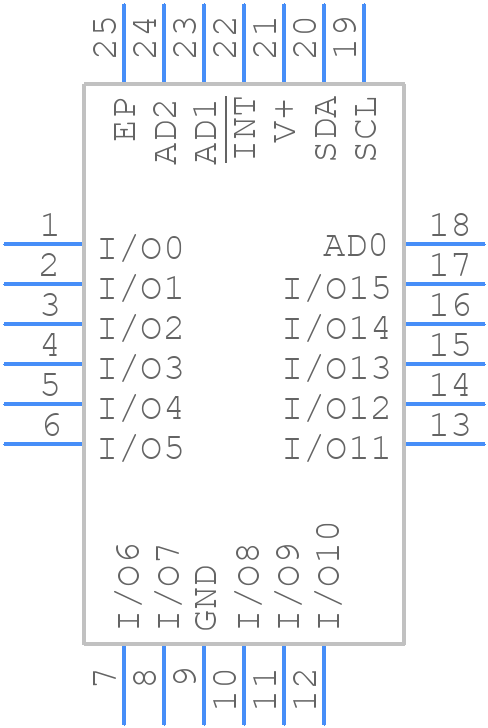

MAX7311ATG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7311ATG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Thin QFN
click to zoom
3D Models
MAX7311ATG+ - Analog Devices - 3D model - Quad Flat No-Lead - 24 Thin QFN
click to zoom

MAX7311ATG+ Details

  • Manufacturer Part Number:

    MAX7311ATG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    4 X 4 MM, 0.80 MM HEIGHT, MO-153, TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-02-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Clock Frequency-Max:

    0.4 MHz

  • JESD-30 Code:

    R-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of I/O Lines:

    16

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.12 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7311ATG+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX7311ATG+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the power and ground pins away from the analog input pins.
  • To ensure the MAX7311ATG+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying VCC before applying any input signals. Also, ensure that the device is properly reset by asserting the RESET pin low for at least 100ns.
  • The maximum capacitance value that can be used with the MAX7311ATG+ depends on the specific application and the desired performance. However, as a general rule, it's recommended to use capacitors with a value between 10nF and 100nF. Larger capacitance values may cause stability issues or affect the device's performance.
  • To troubleshoot issues with the MAX7311ATG+, start by verifying that the device is properly powered and initialized. Check the input signals and ensure they are within the specified range. Use an oscilloscope to verify the output signals and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for further guidance.
  • The MAX7311ATG+ is specified to operate over a temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7311ATG+ Overview

Use the download button to access the MAX7311ATG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX73, or try a keyword search, such as Parallel IO Ports
