MAX7314AEG+ - Analog Devices

Description: Maxim,MAX7314AEG+ Maxim MAX7314AEG+, 16-channel 8bit I/O Expander 400kHz, Serial-2 Wire, 24-Pin QSOP

Download MAX7314AEG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

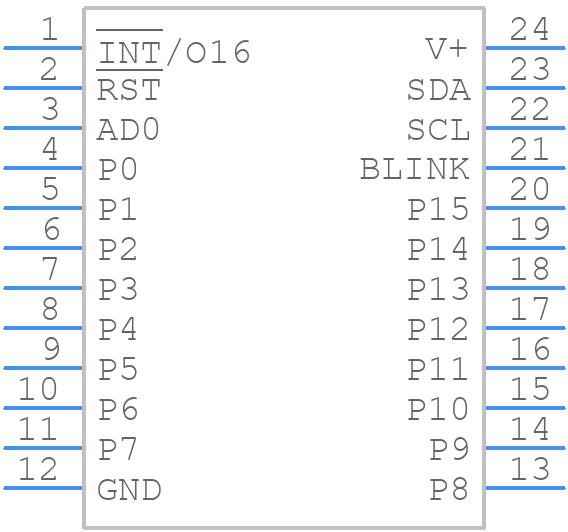

Symbol
MAX7314AEG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7314AEG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 21-0055_O
click to zoom
3D Models
MAX7314AEG+ - Analog Devices - 3D model - Small Outline Packages - MAX 21-0055_O
click to zoom

MAX7314AEG+ Details

  • Manufacturer Part Number:

    MAX7314AEG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, MO-137, QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-02-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of I/O Lines:

    16

  • Number of Ports:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max:

    0.122 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7314AEG+ Frequently Asked Questions (FAQs)

  • The recommended layout involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, use a 10nF capacitor between the VCC and GND pins, and a 100nF capacitor between the VCC and AVCC pins.
  • To ensure accurate monitoring, use a high-precision voltage reference, such as the MAX6126, and a thermistor with a high accuracy rating, such as ±1°C. Also, ensure that the thermistor is properly calibrated and that the MAX7314AEG+ is properly configured for the specific thermistor being used.
  • The maximum current that can be sunk or sourced by the GPIO pins of the MAX7314AEG+ is 20mA. However, it is recommended to limit the current to 10mA or less to ensure reliable operation and to prevent overheating.
  • Yes, the MAX7314AEG+ can be used in a hot-swap application. However, it is recommended to use an external power switch, such as the MAX5970, to handle the high inrush current during hot-swapping. Additionally, ensure that the MAX7314AEG+ is properly configured to handle the power-up and power-down sequences.
  • To troubleshoot issues with the MAX7314AEG+, start by checking the power supply and ensuring that the device is properly configured. Use a logic analyzer to monitor the I2C bus and verify that the device is responding correctly. Also, check the device's status registers to identify any error conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX7314AEG+ Overview

Use the download button to access the MAX7314AEG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX73, or try a keyword search, such as Parallel IO Ports

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
