MAX7315ATE+T - Analog Devices

Description: Interface - I/O Expanders 8-Port I/O Expander with LED Intensity Control, Interrupt, and Hot-Insertion Protection

Download MAX7315ATE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

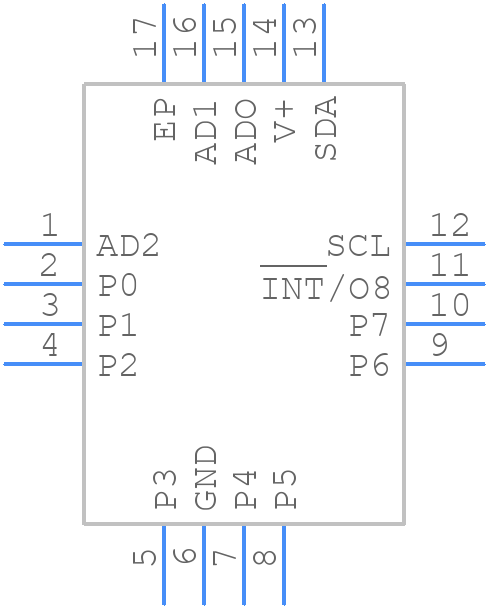

MAX7315ATE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7315ATE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+4-2020
click to zoom
3D Models
MAX7315ATE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633+4-2020
click to zoom

MAX7315ATE+T Details

  • Manufacturer Part Number:

    MAX7315ATE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    HVQCCN, LCC16,.12SQ,20

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Clock Frequency-Max:

    0.4 MHz

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of I/O Lines:

    8

  • Number of Ports:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7315ATE+T Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX7315ATE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals near the analog inputs.
  • To properly configure the MAX7315ATE+T for I2C communication, ensure that the SCL and SDA pins are connected to the I2C bus, and that the device is properly addressed using the A0, A1, and A2 pins. Also, make sure to set the correct clock frequency and bus speed, and to use pull-up resistors on the SCL and SDA lines.
  • The MAX7315ATE+T can drive a maximum capacitive load of 400pF on the SCL and SDA lines. Exceeding this limit may cause signal distortion and affect the reliability of the I2C communication.
  • To troubleshoot I2C communication issues with the MAX7315ATE+T, check the device address, clock frequency, and bus speed. Verify that the SCL and SDA lines are properly connected and that there are no bus conflicts. Use an oscilloscope to monitor the I2C signals and check for signal distortion or noise. Also, ensure that the device is properly powered and that the voltage supply is within the recommended range.
  • Yes, the MAX7315ATE+T can be used in a hot-swappable application. The device has built-in protection against voltage and current surges, and it can withstand the insertion and removal of cards or modules without damage. However, it's recommended to follow proper hot-swap design guidelines and to ensure that the device is properly powered down before removal.
