MAX7315AUE+ - Analog Devices

Description: Maxim MAX7315AUE+, 8-channel 8bit I/O Expander 400kHz, Serial-2 Wire, 16-Pin TSSOP

Download MAX7315AUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

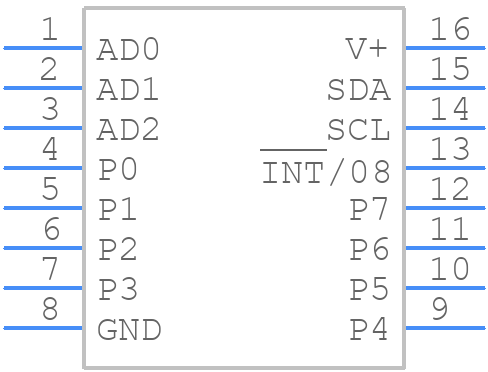

MAX7315AUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7315AUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX7315AUE+
click to zoom
3D Models
MAX7315AUE+ - Analog Devices - 3D model - Small Outline Packages - MAX7315AUE+
click to zoom

MAX7315AUE+ Details

  • Manufacturer Part Number:

    MAX7315AUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-11-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Clock Frequency-Max:

    0.4 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of I/O Lines:

    8

  • Number of Ports:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7315AUE+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX7315AUE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the power supply decoupling capacitors close to the device.
  • To ensure the MAX7315AUE+ is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet, which involves applying the power supply voltage to the device before applying the clock signal. Also, ensure that the reset pin is properly tied to a valid reset source.
  • The maximum capacitive load that the MAX7315AUE+ can drive is not explicitly specified in the datasheet, but it's generally recommended to keep the capacitive load below 100pF to ensure reliable operation. However, it's best to consult with Analog Devices' application engineers for specific guidance on capacitive load limits.
  • The MAX7315AUE+ is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics, such as thermal resistance and power dissipation, when designing for high-temperature applications. Additionally, ensure that the device is properly heatsinked and that the PCB is designed to handle the thermal stresses.
  • To troubleshoot issues with the MAX7315AUE+, start by verifying the power supply voltage, clock signal, and reset signal. Use an oscilloscope to check the device's output signals and ensure they are within the specified limits. Also, consult the datasheet and application notes for guidance on troubleshooting common issues.
