MAX7317AEE+T - Analog Devices

Description: Interface - I/O Expanders 10-Port SPI-Interfaced I/O Expander with Overvoltage and Hot-Insertion Protection

Download MAX7317AEE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

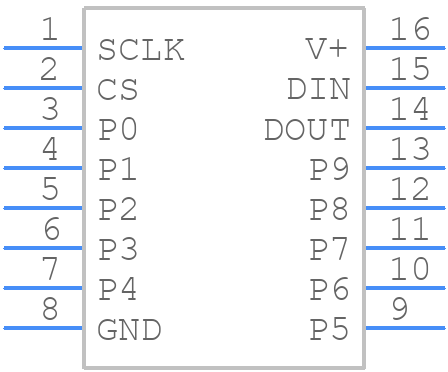

MAX7317AEE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7317AEE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP
click to zoom
3D Models
MAX7317AEE+T - Analog Devices - 3D model - Small Outline Packages - 16 QSOP
click to zoom

MAX7317AEE+T Details

  • Manufacturer Part Number:

    MAX7317AEE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    SSOP, SSOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-08-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of I/O Lines:

    10

  • Number of Ports:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max:

    0.073 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

MAX7317AEE+T Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the MAX7317AEE+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a ferrite bead or a series resistor to filter the power supply and reduce noise.
  • To ensure proper power-up and initialization, it's recommended to follow the power-up sequence specified in the datasheet, which involves applying the power supply voltage to the device before applying the clock signal. Additionally, the device should be reset by pulling the RESET pin low during power-up to ensure that the device is properly initialized.
  • Not using the internal pull-up resistors on the I2C bus can lead to bus contention and data corruption. To properly terminate the bus, it's recommended to use external pull-up resistors with a value between 1kΩ and 10kΩ, and to ensure that the total capacitance on the bus is within the recommended range specified in the datasheet.
  • If the MAX7317AEE+T is not responding to I2C commands, it's recommended to check the power supply voltage, clock signal, and reset pin to ensure that they are within the recommended operating conditions. Common causes of this issue include incorrect power-up sequence, incorrect clock frequency, and bus contention. It's also recommended to check the I2C bus signals using an oscilloscope to identify any issues with the bus.
  • The MAX7317AEE+T has a maximum junction temperature of 150°C, and it's recommended to ensure that the device operates within its recommended temperature range to prevent thermal shutdown. Thermal considerations include providing adequate heat sinking, using a thermal pad or heat sink, and ensuring good airflow around the device.
