MAX7370ETG+ - Analog Devices

Description: Display Drivers & Controllers 8 x 8 Key-Switch Controller & LED Driver/GPIOs w I2C Interface & IEC Lvl 4 ESD Protection

Download MAX7370ETG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

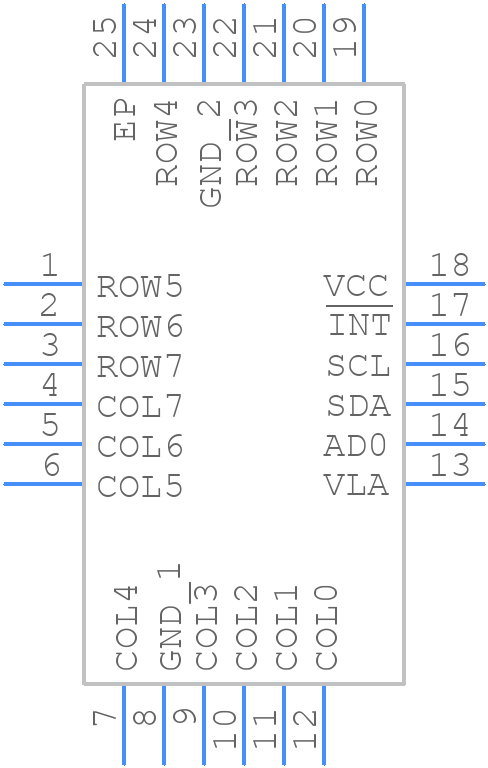

MAX7370ETG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7370ETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 TQFN-EP*-*
click to zoom
3D Models
MAX7370ETG+ - Analog Devices - 3D model - Quad Flat No-Lead - 24 TQFN-EP*-*
click to zoom

MAX7370ETG+ Details

  • Manufacturer Part Number:

    MAX7370ETG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-3.5X3.5X0.75

  • Package Description:

    ROHS COMPLIANT, TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-3.5X3.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2011-07-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-PDSO-N24

  • JESD-609 Code:

    e3

  • Length:

    3.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    LCC24,.13SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX7370ETG+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX7370ETG+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides a recommended PCB layout, but it's also a good idea to consult with experienced engineers and use PCB design tools to optimize the layout.
  • To ensure proper power-up and power-down of the MAX7370ETG+, follow the power-up and power-down sequencing guidelines in the datasheet. Make sure to power up the device in the correct order (VCC, then VIN), and power down in the reverse order. Also, ensure that the input voltage ramps up and down slowly to prevent damage to the device.
  • The MAX7370ETG+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • To troubleshoot issues with the MAX7370ETG+, start by checking the power supply and input voltage levels. Verify that the device is properly powered up and powered down, and that the input voltage is within the recommended range. Use an oscilloscope to check the output voltage and current, and consult the datasheet for troubleshooting guidelines. If the issue persists, contact Analog Devices Inc support for further assistance.
  • Yes, the MAX7370ETG+ is suitable for high-reliability and high-availability applications. It has a high MTBF (mean time between failures) rating and is designed to meet the requirements of demanding applications. However, it's essential to follow proper design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the required reliability and availability standards.
