MAX7400ESA+ - Analog Devices

Description: Maxim MAX7400ESA+, Active Filter, Low Pass Filter, 8th Order Switched Capacitor 0.001 → 10kHz, 8-Pin SOIC

Download MAX7400ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

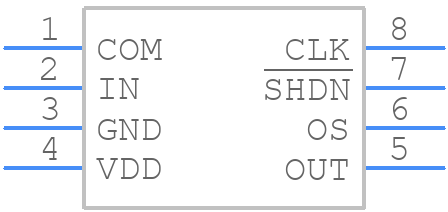

MAX7400ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7400ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX7400ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX7400ESA+ Details

  • Manufacturer Part Number:

    MAX7400ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1998-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Active Filter Type:

    SWITCHED CAPACITOR FILTER

  • Center or Cutoff Freq Rng-Max:

    10 kHz

  • Center or Cutoff Freq Rng-Min:

    0.001 kHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Order:

    8TH

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Poles and Zeros:

    8 AND 0

  • Qualification Status:

    Not Qualified

  • Response:

    LOWPASS

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transfer Characteristics:

    ELLIPTIC

  • Width:

    3.9 mm

MAX7400ESA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX7400ESA+ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The choice of external components for the MAX7400ESA+ depends on the specific application and operating conditions. As a general rule, use low-ESR capacitors with a value of 10uF to 22uF for the input and output capacitors. For more specific guidance, refer to the application notes and design guides provided by Analog Devices Inc.
  • The MAX7400ESA+ has an operating temperature range of -40°C to +125°C. As the temperature increases, the device's performance may degrade, with increased noise and decreased output voltage. It's essential to ensure proper thermal management and heat sinking to maintain optimal performance.
  • To troubleshoot common issues with the MAX7400ESA+, start by checking the input voltage, output load, and PCB layout. Ensure that the device is properly decoupled, and the input and output capacitors are of the correct value and type. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • The MAX7400ESA+ is a high-reliability device that meets various industry standards, including AEC-Q100 for automotive applications and IEC 60601-1 for medical devices. However, it's essential to consult the datasheet and relevant application notes to ensure compliance with specific industry standards and regulations.
