MAX7422EUA+ - Analog Devices

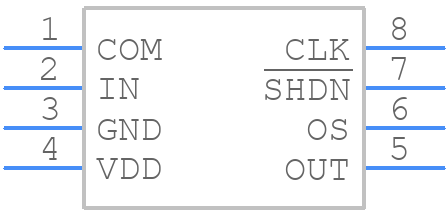

MAX7422EUA+ Details

• Manufacturer Part Number:

  MAX7422EUA+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  8-MINI_SO-N/A

• Package Description:

  MICRO MAX PACKAGE-8

• Pin Count:

  8

• Manufacturer Package Code:

  8-MINI_SO-N/A

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2000-11-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Active Filter Type:

  SWITCHED CAPACITOR FILTER

• Center or Cutoff Freq Rng-Max:

  30 kHz

• Center or Cutoff Freq Rng-Min:

  0.001 kHz

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Order:

  5TH

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP8,.19

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Poles and Zeros:

  5 AND 0

• Qualification Status:

  Not Qualified

• Response:

  LOWPASS

• Seated Height-Max:

  1.1 mm

• Supply Current-Max (Isup):

  3.4 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transfer Characteristics:

  ELLIPTIC

• Width:

  3 mm
