MAX749CPA+ - Analog Devices

Description: MAX749CPA+, LCD Display Driver, 8-Pin PDIP

Download MAX749CPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

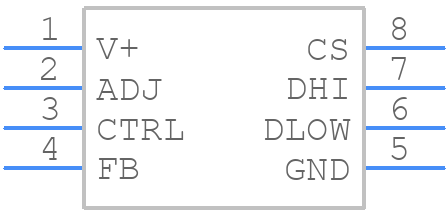

Symbol
MAX749CPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX749CPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P8+1_2020
click to zoom
3D Models
MAX749CPA+ - Analog Devices - 3D model - Dual-In-Line Packages - P8+1_2020
click to zoom

MAX749CPA+ Details

  • Manufacturer Part Number:

    MAX749CPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES IN PFM

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Nom:

    -100 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX749CPA+ Frequently Asked Questions (FAQs)

  • The MAX749CPA+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve stability.
  • To optimize the performance of the MAX749CPA+, it is recommended to follow the application notes and design guidelines provided by Analog Devices Inc. Additionally, consider factors such as input and output impedance, noise reduction, and power supply decoupling to ensure optimal performance in your specific application.
  • The MAX749CPA+ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device within the specified operating temperature range and to provide adequate heat sinking and thermal management in high-power applications.
  • The MAX749CPA+ is a commercial-grade device and may not be suitable for high-reliability or safety-critical applications. For such applications, it is recommended to use a device that is specifically designed and qualified for high-reliability or safety-critical use, such as a device with a higher temperature rating or additional safety features.
  • To troubleshoot issues with the MAX749CPA+, it is recommended to follow a systematic approach, including checking the power supply, input and output signals, and device configuration. Additionally, consult the datasheet and application notes, and consider using diagnostic tools such as oscilloscopes and logic analyzers to identify the root cause of the issue.
