Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MAX749CSA+ - Analog Devices

Description: MAX749CSA+, LCD Driver, 8-Pin SOIC N

Download MAX749CSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

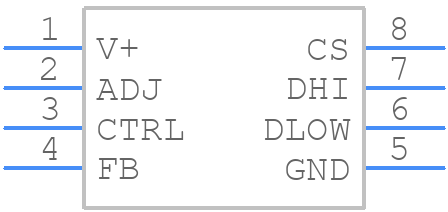

MAX749CSA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX749CSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX749CSA+
click to zoom
3D Models
MAX749CSA+ - Analog Devices - 3D model - Small Outline Packages - MAX749CSA+
click to zoom

MAX749CSA+ Details

  • Manufacturer Part Number:

    MAX749CSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Nom:

    -100 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX749CSA+ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding configuration, keeping the analog and digital grounds separate, and placing the device close to the power supply. Additionally, ensure that the input and output traces are routed away from each other and from noisy digital signals.
  • The output voltage selection depends on the specific application requirements. For example, a higher output voltage may be needed for higher current loads, but it may also increase power consumption and heat generation. Consult the datasheet and application notes for guidance on selecting the optimal output voltage for your specific use case.
  • The MAX749CSA+ has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and follow proper PCB design and layout guidelines to minimize thermal resistance. Additionally, consider derating the output current and voltage in high-temperature environments to prevent overheating.
  • The MAX749CSA+ has built-in overcurrent protection, but it's recommended to add external protection components, such as fuses or current-limiting resistors, to ensure reliable operation. Additionally, consider adding a short-circuit protection circuit, such as a current-sensing resistor and a comparator, to detect and respond to short-circuit conditions.
  • Follow proper PCB design and layout guidelines to minimize electromagnetic radiation. Use shielding, filtering, and decoupling techniques to reduce EMI. Ensure that the MAX749CSA+ is placed away from noisy digital signals and antennas. Consult the datasheet and application notes for specific guidance on EMI and EMC considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX749CSA+ Overview

Use the download button to access the MAX749CSA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX74, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to MAX749CSA+

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

MAX749CSA+ Alternates

Showing results

Image Part Number Model
Part Image MAX749CSA+ Maxim Integrated Products

Switching Controller, Current-mode, 500kHz Switching Freq-Max, CMOS, PDSO8
Part Image MAX749ESA+ Maxim Integrated Products

Switching Controller, Current-mode, 500kHz Switching Freq-Max, CMOS, PDSO8
Part Image MAX749ESA+T Maxim Integrated Products

Switching Controller, Current-mode, 500kHz Switching Freq-Max, CMOS, PDSO8
Part Image MAX749CSA+T Maxim Integrated Products

Switching Controller, Current-mode, 500kHz Switching Freq-Max, CMOS, PDSO8
Part Image MAX749CSA-T Maxim Integrated Products

Switching Controller, Current-mode, 500kHz Switching Freq-Max, CMOS, PDSO8
For a full list of alternate parts for MAX749CSA+, check out Findchips.com
