MAX7500MSA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX7500MSA+T - TEMPERATURE SENSOR, 2DEG C, NSOIC-8

Download MAX7500MSA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

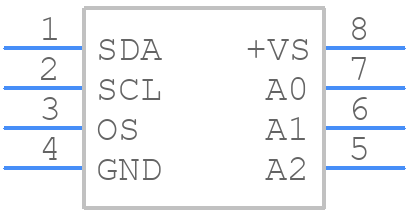

Symbol
MAX7500MSA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX7500MSA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX7500MSA+T - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX7500MSA+T Details

  • Manufacturer Part Number:

    MAX7500MSA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2004-08-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    3 Cel

  • Additional Feature:

    THERMAL WATCHDOG

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    9

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.25 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX7500MSA+T Frequently Asked Questions (FAQs)

  • The MAX7500MSA+T requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve thermal performance.
  • The selection of input and output capacitors for the MAX7500MSA+T depends on the specific application requirements. In general, it is recommended to use low-ESR capacitors with a value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor. The datasheet provides more detailed guidance on capacitor selection.
  • The MAX7500MSA+T is rated for operation over a temperature range of -40°C to +125°C. However, the device may not operate within specifications at the extreme ends of this range, and derating may be necessary for high-temperature applications.
  • The MAX7500MSA+T requires a controlled power-up and power-down sequence to ensure proper operation. It is recommended to follow the power-up and power-down sequences outlined in the datasheet, including ramping up the input voltage slowly and ensuring that the enable pin is properly controlled.
  • The typical startup time for the MAX7500MSA+T is around 1ms to 2ms, depending on the input voltage and output load. However, this time can vary depending on the specific application and operating conditions.
