MAX77231EZL+ - Analog Devices

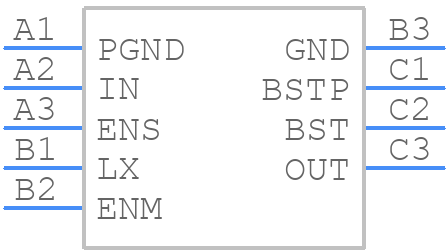

MAX77231EZL+ Details

• Manufacturer Part Number:

  MAX77231EZL+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  9-WLCSP-N/A

• Package Description:

  WLP-9

• Pin Count:

  9

• Manufacturer Package Code:

  9-WLCSP-N/A

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2016-09-19

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  OUTPUT IS FACTORY TRIMMABLE FROM 11.2V TO 16.2V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Technique:

  PULSE FREQUENCY MODULATION

• Input Voltage-Max:

  4.8 V

• Input Voltage-Min:

  2.75 V

• Input Voltage-Nom:

  3.7 V

• JESD-30 Code:

  S-PBGA-B9

• Length:

  1.238 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.3 A

• Output Voltage-Max:

  16.2 V

• Output Voltage-Min:

  11.2 V

• Output Voltage-Nom:

  11.7 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Seated Height-Max:

  0.35 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BOOST

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Width:

  1.238 mm
