MAX77504BAWE+T - Analog Devices

Description: 14V Input, 3A High-Efficiency Buck Converter

Download MAX77504BAWE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

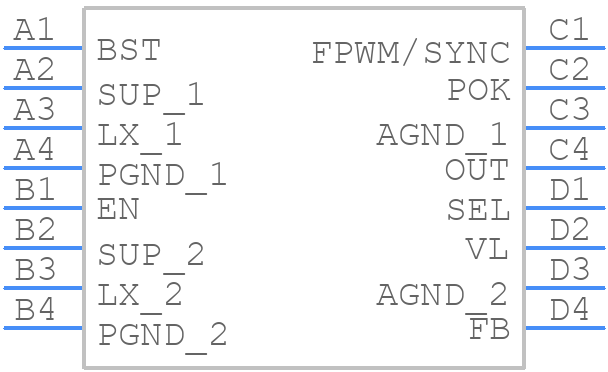

MAX77504BAWE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77504BAWE+T - Analog Devices PCB footprint - BGA - BGA - W161L1+1
click to zoom
3D Models
MAX77504BAWE+T - Analog Devices - 3D model - BGA - W161L1+1
click to zoom

MAX77504BAWE+T Details

  • Manufacturer Part Number:

    MAX77504BAWE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-WLCSP-N/A

  • Package Description:

    WLP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-12-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    2.6 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XBGA-B16

  • Length:

    1.688 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1575 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.688 mm

MAX77504BAWE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77504BAWE+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog traces away from the digital traces.
  • To ensure the stability of the output voltage, it's essential to choose the correct output capacitor value and type. A minimum capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple. Additionally, the input voltage should be well-regulated and free of noise to prevent output voltage fluctuations.
  • The MAX77504BAWE+T can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent overheating. Exceeding the maximum input voltage can lead to device damage or malfunction.
  • The MAX77504BAWE+T is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked, and the PCB is designed to dissipate heat efficiently to prevent overheating.
  • To troubleshoot issues with the MAX77504BAWE+T, start by checking the input voltage and ensuring it's within the recommended range. Verify that the output voltage is within the expected range and that the device is not overheating. Check the PCB layout for any errors or noise coupling issues. If the problem persists, consult the datasheet and application notes for guidance or contact Analog Devices' support team for assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX77504BAWE+T Overview

Use the download button to access the MAX77504BAWE+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX77, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
