MAX77596ETBB+T - Analog Devices

Description: 24V, 300mA, Buck Converter with 1.1μA IQ

Download MAX77596ETBB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

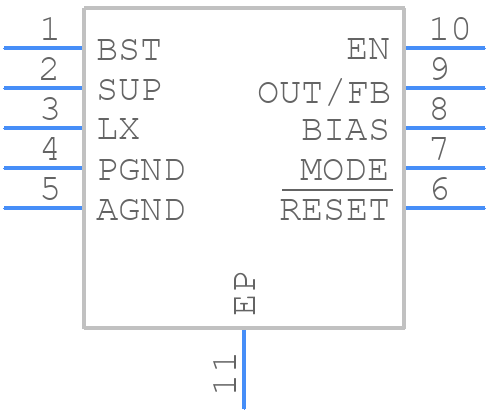

MAX77596ETBB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77596ETBB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T102A2+1C
click to zoom
3D Models
MAX77596ETBB+T - Analog Devices - 3D model - Small Outline No-lead - T102A2+1C
click to zoom

MAX77596ETBB+T Details

  • Manufacturer Part Number:

    MAX77596ETBB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-2.5X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-2.5X2X0.75

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2015-10-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    3.4 V

  • Output Voltage-Min:

    3.1 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1820 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX77596ETBB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77596ETBB+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve performance.
  • To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB under the device, and to use a heat sink or a thermal interface material (TIM) to dissipate heat. The device's thermal pad should be connected to a solid ground plane to improve heat dissipation. Additionally, it's recommended to keep the device away from other heat sources on the PCB.
  • The recommended input capacitor value for the MAX77596ETBB+T is 10uF to 22uF, with an X5R or X7R dielectric type. The capacitor should be placed as close as possible to the device's input pins to minimize noise and improve performance.
  • To troubleshoot issues with the MAX77596ETBB+T, start by checking the input voltage and current, and ensuring that the device is properly configured and connected. Check the output voltage and current, and verify that the device is not overheating. Use an oscilloscope to check for noise and ripple on the output voltage. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines, and consider contacting Analog Devices' technical support for further assistance.
  • The MAX77596ETBB+T is a commercial-grade device, but it can be used in high-reliability or high-temperature applications with proper design and testing. However, it's recommended to consult with Analog Devices' technical support and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
