MAX77596ETBC+T - Analog Devices

Description: 24V, 300mA, Buck Converter with 1.1μA IQ

Download MAX77596ETBC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

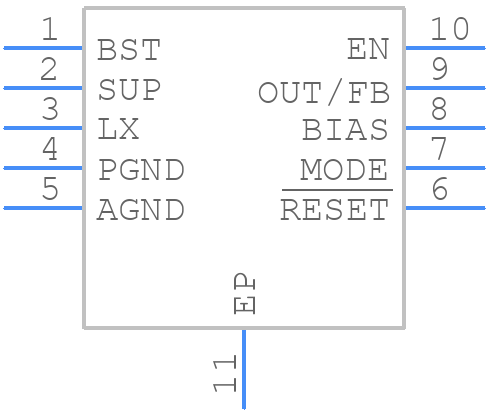

MAX77596ETBC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77596ETBC+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T102A2+1C
click to zoom
3D Models
MAX77596ETBC+T - Analog Devices - 3D model - Small Outline No-lead - T102A2+1C
click to zoom

MAX77596ETBC+T Details

  • Manufacturer Part Number:

    MAX77596ETBC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-2.5X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-2.5X2X0.75

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2015-10-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1820 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX77596ETBC+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX77596ETBC+T. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
  • Proper thermal management is essential for the MAX77596ETBC+T. Ensure good airflow around the device, use a heat sink if necessary, and follow the thermal design guidelines provided in the datasheet. Additionally, consider using thermal interface materials to improve heat transfer between the device and the heat sink.
  • Not using the recommended input and output capacitors can lead to reduced performance, increased noise, and potential instability of the MAX77596ETBC+T. The recommended capacitors are chosen to ensure optimal performance, so it's recommended to use them to avoid any potential issues.
  • To troubleshoot issues with the MAX77596ETBC+T, start by reviewing the datasheet and application notes to ensure proper usage and configuration. Check the input and output voltages, currents, and waveforms to identify any anomalies. Use oscilloscopes and other diagnostic tools to help identify the root cause of the issue.
  • Operating the MAX77596ETBC+T outside of its recommended operating conditions can lead to reduced performance, increased power consumption, and potentially even damage to the device. Ensure that the device is operated within its recommended voltage, current, and temperature ranges to ensure optimal performance and reliability.
