Part Image

MAX77801ETP+T - Analog Devices

Description: Switching Voltage Regulators High-Efficiency Buck-Boost Regulator

Download MAX77801ETP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

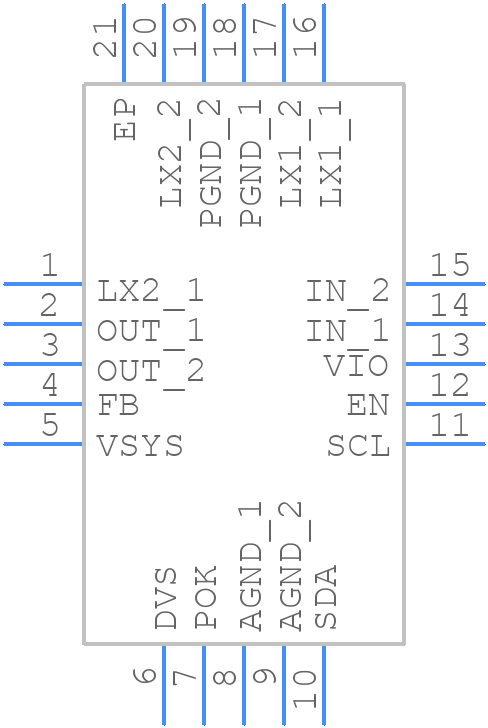

Symbol
MAX77801ETP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77801ETP+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044+3C 21-0139 U
click to zoom
3D Models
MAX77801ETP+T - Analog Devices - 3D model - Quad Flat No-Lead - T2044+3C 21-0139 U
click to zoom

MAX77801ETP+T Details

  • Manufacturer Part Number:

    MAX77801ETP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2015-06-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 2.6 TO 4.1875V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.8 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.7 A

  • Output Voltage-Max:

    4.18 V

  • Output Voltage-Min:

    2.6 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2750 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX77801ETP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77801ETP+T involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog signals away from the power traces.
  • The selection of input and output capacitors for the MAX77801ETP+T depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The capacitor selection should also consider the voltage rating, ripple current, and temperature range.
  • The MAX77801ETP+T has an operating ambient temperature range of -40°C to +85°C. However, the device can operate up to +125°C for a short period of time during soldering or reflow. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
  • The MAX77801ETP+T has a programmable output voltage that can be set using an external resistor divider network. The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network. The resistors should be chosen to ensure that the output voltage is within the desired range.
  • The typical efficiency of the MAX77801ETP+T is around 92% to 95% depending on the input voltage, output voltage, and load current. The efficiency can be improved by optimizing the PCB layout, using low-ESR capacitors, and minimizing the voltage drop across the internal switches.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX77801ETP+T Overview

Use the download button to access the MAX77801ETP+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX77, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
