MAX77827BEFD+T - Analog Devices

Description: 5.5V Input, 1.8A/3.1A Switch Buck-Boost Converter with 6μA IQ

Download MAX77827BEFD+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

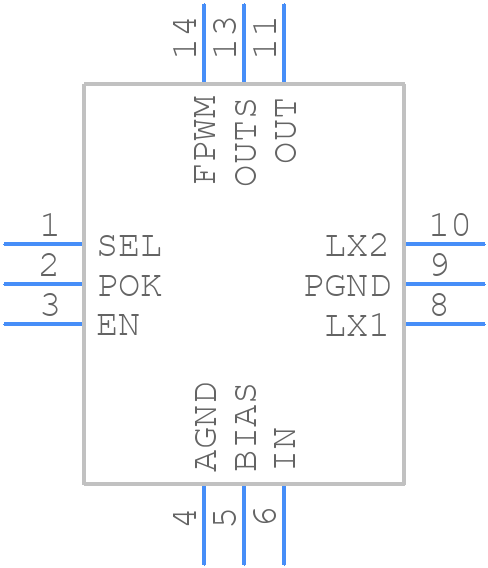

Symbol
MAX77827BEFD+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77827BEFD+T - Analog Devices PCB footprint - Other - Other - MAX77827BEFD+T-9
click to zoom
3D Models
MAX77827BEFD+T - Analog Devices - 3D model - Other - MAX77827BEFD+T-9
click to zoom

MAX77827BEFD+T Details

  • Manufacturer Part Number:

    MAX77827BEFD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-2.5X2.5X0.55

  • Package Description:

    FC2QFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-2.5X2.5X0.55

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.8 V

  • JESD-30 Code:

    S-XQCC-N14

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Output Voltage-Max:

    5.3 V

  • Output Voltage-Min:

    2.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC14,.1SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2800 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

MAX77827BEFD+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX77827BEFD+T. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it's a good idea to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The selection of input and output capacitors depends on the specific application requirements. For the input capacitor, a low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. For the output capacitor, a low-ESR ceramic capacitor with a value of 10uF to 47uF is recommended. It's also important to consider the voltage rating, ripple current rating, and temperature rating of the capacitors.
  • The MAX77827BEFD+T has an operating ambient temperature range of -40°C to +85°C. However, the device can operate up to +125°C junction temperature. It's important to ensure that the device is properly cooled and that the thermal design is adequate to prevent overheating.
  • The MAX77827BEFD+T has a programmable output voltage range of 0.8V to 3.3V. The output voltage can be set using the FB pin and an external resistor divider network. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
  • The MAX77827BEFD+T has a maximum input voltage range of 5.5V. It's recommended to operate the device within the recommended input voltage range of 3.5V to 5.5V for optimal performance and reliability.
