MAX77827CEWC+T - Analog Devices

Description: 5.5V Input, 1.8A/3.1A Switch Buck-Boost Converter with 6μA IQ

Download MAX77827CEWC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

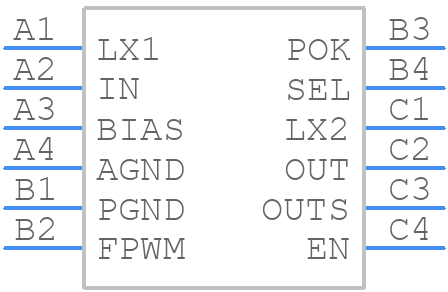

MAX77827CEWC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77827CEWC+T - Analog Devices PCB footprint - BGA - BGA - W121H2+1
click to zoom
3D Models
MAX77827CEWC+T - Analog Devices - 3D model - BGA - W121H2+1
click to zoom

MAX77827CEWC+T Details

  • Manufacturer Part Number:

    MAX77827CEWC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    WLP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3.8 V

  • JESD-30 Code:

    R-XBGA-B12

  • Length:

    2.008 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Output Voltage-Max:

    5.3 V

  • Output Voltage-Min:

    2.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    6 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2800 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.608 mm

MAX77827CEWC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX77827CEWC+T involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and EMI.
  • The selection of input and output capacitors for the MAX77827CEWC+T depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The capacitor voltage rating should be at least 1.5 times the maximum input voltage. Additionally, the capacitor should be able to handle the ripple current and have a low equivalent series resistance (ESR) to minimize power loss.
  • The MAX77827CEWC+T has an operating ambient temperature range of -40°C to +85°C. However, the device can operate up to +105°C with derating. It's recommended to consult the datasheet for more information on thermal derating and to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
  • The MAX77827CEWC+T has a programmable output voltage that can be set using an external resistor divider network. The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network. The resistors should be chosen to ensure that the output voltage is within the desired range and that the device is operated within its recommended operating conditions.
  • The MAX77827CEWC+T has a maximum input voltage range of 5.5V to 21V. However, the device can operate with an input voltage as low as 4.5V with reduced performance. It's recommended to consult the datasheet for more information on input voltage range and to ensure that the device is operated within the recommended input voltage range to ensure reliability and performance.
