MAX77839AEWL+T - Analog Devices

Description: 5.5V Input, 4.4A/3.6A Switching Current 6μA IQ Buck-Boost Converter

Download MAX77839AEWL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

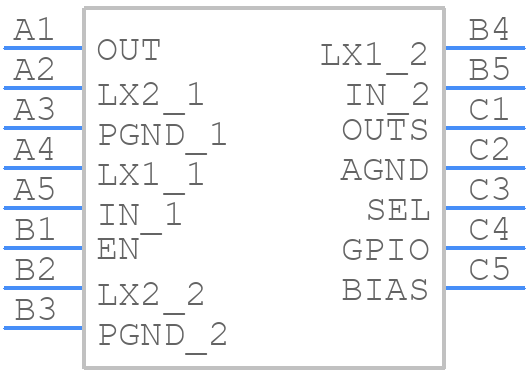

Symbol
MAX77839AEWL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX77839AEWL+T - Analog Devices PCB footprint - BGA - BGA - W151K2Z+1
click to zoom
3D Models
MAX77839AEWL+T - Analog Devices - 3D model - BGA - W151K2Z+1
click to zoom

MAX77839AEWL+T Details

  • Manufacturer Part Number:

    MAX77839AEWL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    15-WLCSP-N/A

  • Package Description:

    WLP-15

  • Pin Count:

    15

  • Manufacturer Package Code:

    15-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-01-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR
