MAX77857CEWB+ - Analog Devices

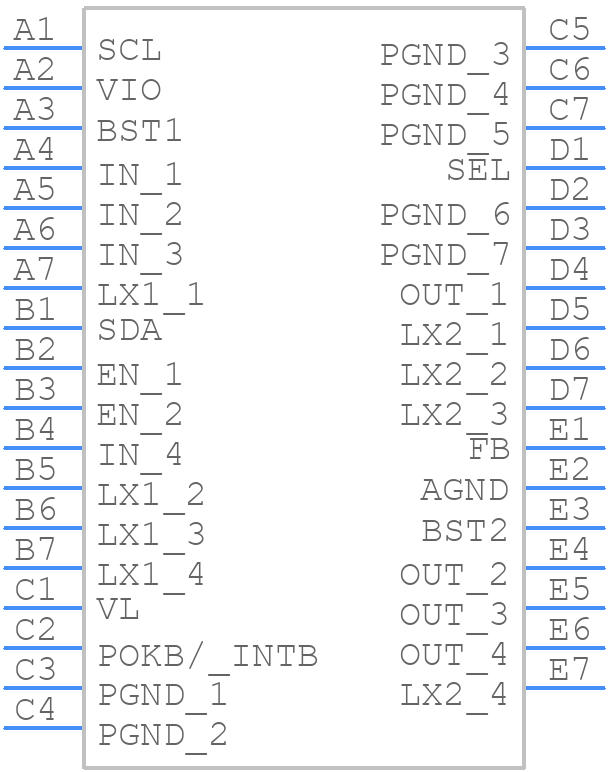

MAX77857CEWB+ Details

• Manufacturer Part Number:

  MAX77857CEWB+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  35-WLCSP-N/A

• Package Description:

  WLP-35

• Pin Count:

  35

• Manufacturer Package Code:

  35-WLCSP-N/A

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2022-03-16

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  16 V

• Input Voltage-Min:

  2.5 V

• Input Voltage-Nom:

  7.6 V

• JESD-30 Code:

  R-XBGA-B35

• Length:

  2.828 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  35

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  6 A

• Output Voltage-Max:

  15 V

• Output Voltage-Min:

  3 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA35,5X7,16

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.69 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  2270 kHz

• Terminal Finish:

  Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2.028 mm
