MAX79356ECM+ - Analog Devices

Description: Network Controller & Processor ICs MAX79356 ZENO - OFDM Modem

Download MAX79356ECM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

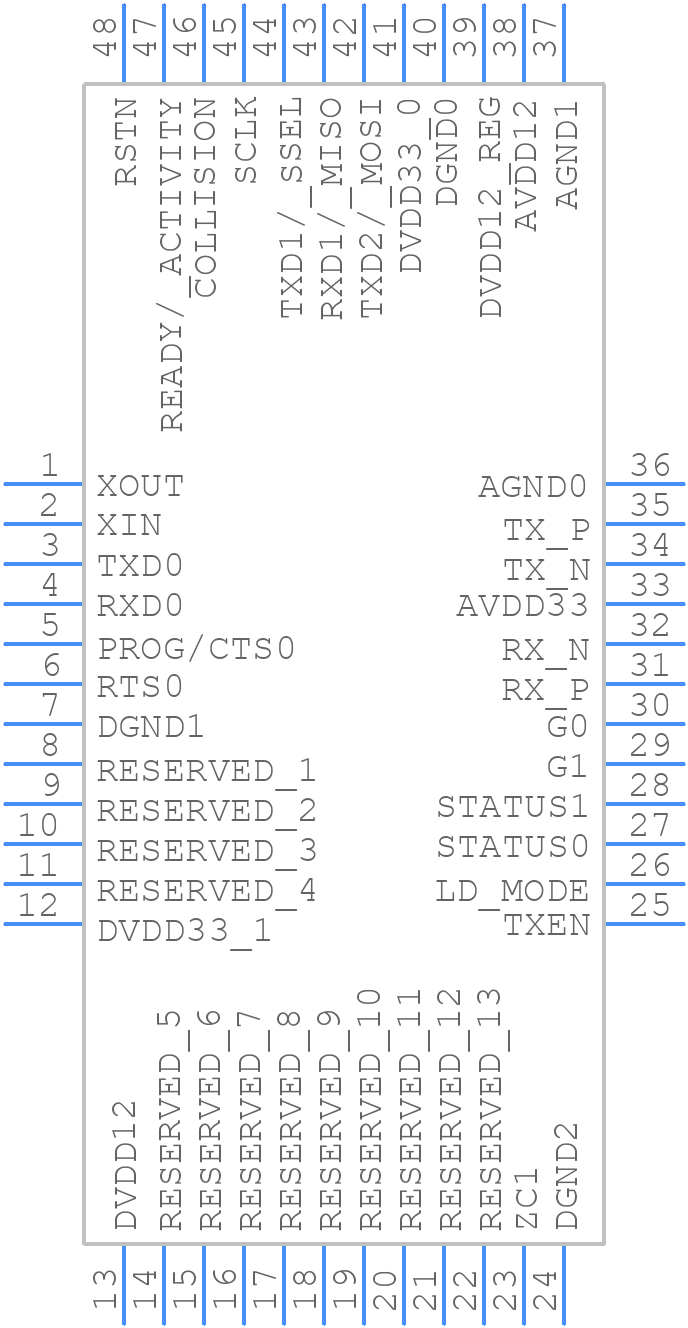

MAX79356ECM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX79356ECM+ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - MAX79356ECM+
click to zoom
3D Models
MAX79356ECM+ - Analog Devices - 3D model - Quad Flat Packages - MAX79356ECM+
click to zoom

MAX79356ECM+ Details

  • Manufacturer Part Number:

    MAX79356ECM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LQFP-7X7X1.4

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LQFP-7X7X1.4

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2015-05-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Rate:

    230 Mbps

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    MODEM

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX79356ECM+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX79356ECM+ is to follow the guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the MAX79356ECM+, it's recommended to follow the application notes and design guidelines provided by Analog Devices Inc. Additionally, consider factors such as input voltage, output current, and operating frequency, and adjust the device's configuration and component values accordingly. It's also recommended to perform thorough testing and characterization of the device in the specific application.
  • The MAX79356ECM+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device's junction temperature below 125°C. This can be achieved by providing adequate heat sinking, using a thermal interface material, and ensuring good airflow around the device. Additionally, consider the thermal resistance of the PCB and the device's package when designing the thermal management system.
  • To troubleshoot issues with the MAX79356ECM+, start by reviewing the datasheet and application notes to ensure that the device is being used within its recommended operating conditions. Check the input voltage, output current, and operating frequency to ensure they are within the specified ranges. Use oscilloscopes and other diagnostic tools to measure the device's output and input signals. If the issue persists, consider consulting with Analog Devices Inc.'s technical support team or seeking assistance from a qualified engineer.
  • The MAX79356ECM+ is designed to meet the EMI and EMC requirements of various regulatory bodies. To ensure compliance, it's recommended to follow the guidelines provided in the datasheet and application notes, including using a shielded enclosure, keeping the device's output cables short, and using EMI filters and shielding components as needed. Additionally, consider performing EMI and EMC testing to ensure compliance with relevant standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX79356ECM+ Overview

Use the download button to access the MAX79356ECM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX79, or try a keyword search, such as Modems

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
