MAX8520ETP+T - Analog Devices

Description: Power Management Specialized - PMIC Smallest TEC Power Drivers for Optical M

Download MAX8520ETP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

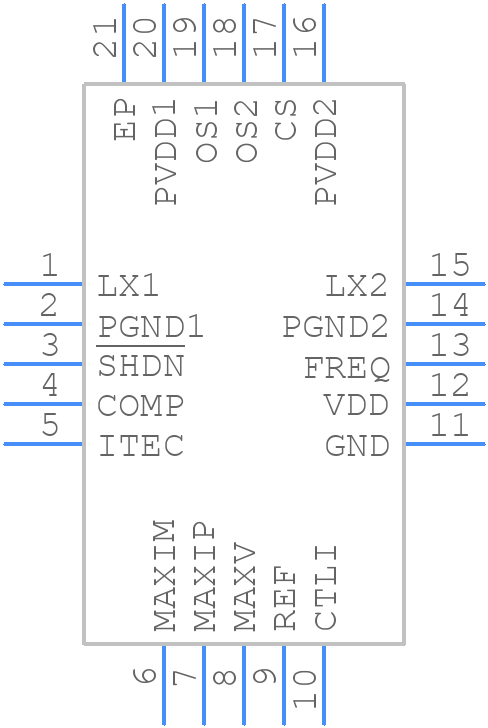

MAX8520ETP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8520ETP+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2055+4
click to zoom
3D Models
MAX8520ETP+T - Analog Devices - 3D model - Quad Flat No-Lead - T2055+4
click to zoom

MAX8520ETP+T Details

  • Manufacturer Part Number:

    MAX8520ETP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Package Description:

    VQCCN,

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2002-11-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX8520ETP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8520ETP+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, it's crucial to follow the compensation guidelines provided in the datasheet. This includes selecting the correct compensation components (R1, R2, C1, and C2) based on the output voltage and load current. Additionally, make sure to place the compensation components close to the device and use a low-ESR output capacitor.
  • The MAX8520ETP+T has an absolute maximum input voltage rating of 18V. However, the recommended maximum input voltage is 15V to ensure reliable operation and to prevent damage to the device.
  • The MAX8520ETP+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the thermal management guidelines provided in the datasheet and to ensure proper heat sinking to prevent overheating.
  • To troubleshoot issues with the MAX8520ETP+T, start by verifying the input voltage, output voltage, and load current. Check the device's pin voltages and currents using an oscilloscope or a multimeter. Ensure that the compensation components are correctly selected and placed. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for more detailed troubleshooting guidelines.
