MAX8527EUD+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX8527EUD+T - LDO, ADJ, 2A, 1.425V TO 3.6V, TSSOP-14 U14E+3

Download MAX8527EUD+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

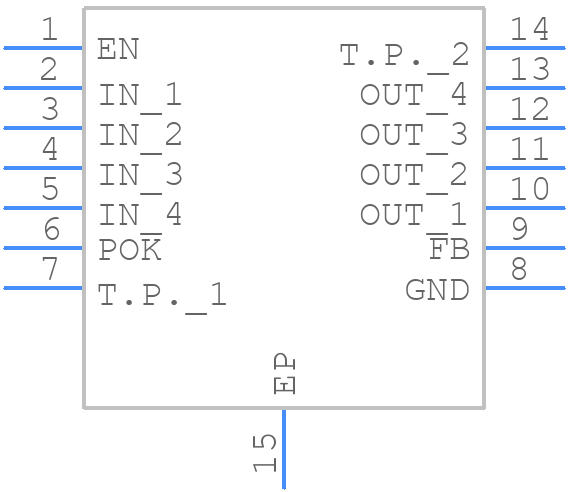

MAX8527EUD+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8527EUD+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U14E+3
click to zoom
3D Models
MAX8527EUD+T - Analog Devices - 3D model - Small Outline Packages - U14E+3
click to zoom

MAX8527EUD+T Details

  • Manufacturer Part Number:

    MAX8527EUD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    ROHS COMPLIANT, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4_EP-4.4_MM

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-06-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.1 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Line Regulation-Max (%/V):

    0.15

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    2 A

  • Output Voltage1-Max:

    3.4 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX8527EUD+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8527EUD+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 1uF ceramic capacitor is recommended for the output capacitor. Also, avoid using long traces and vias near the device to minimize parasitic inductance.
  • The MAX8527EUD+T can handle input voltages up to 28V, but it's recommended to keep the input voltage below 24V to ensure reliable operation and to prevent damage to the device.
  • The MAX8527EUD+T is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Additionally, ensure that the device is properly heatsinked to prevent overheating.
  • To troubleshoot issues with the MAX8527EUD+T, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or noise on the output. Verify that the input and output capacitors are of high quality and have low ESR. Check the PCB layout for any signs of damage or overheating. Consult the datasheet and application notes for troubleshooting guidelines.
