MAX8557ETE+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX8557ETE+T - LDO Voltage Regulator, Adjustable, 1.425V to 3.6V input, 0.1V drop, 0.5V to 3.4V/4A out, TQFN-16

Download MAX8557ETE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

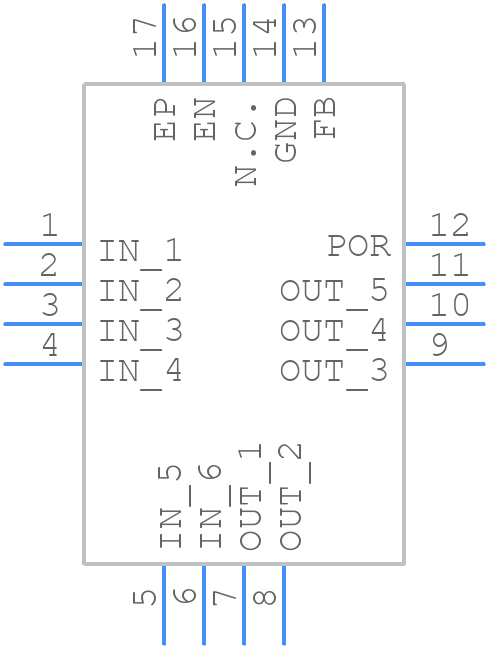

MAX8557ETE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8557ETE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655+3
click to zoom
3D Models
MAX8557ETE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1655+3
click to zoom

MAX8557ETE+T Details

  • Manufacturer Part Number:

    MAX8557ETE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-05-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.2 V

  • Dropout Voltage1-Nom:

    0.1 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Line Regulation-Max (%/V):

    0.15

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    4 A

  • Output Voltage1-Max:

    3.4 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.2SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX8557ETE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8557ETE+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog traces away from the digital traces.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a low-impedance output capacitor. If oscillations occur, try adding a small series resistor (e.g., 1Ω) between the output and the output capacitor.
  • The maximum input voltage that can be applied to the MAX8557ETE+T is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage remains within the specified range.
  • The MAX8557ETE+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and to ensure good thermal management (e.g., using a heat sink) to prevent overheating.
  • To troubleshoot issues with the MAX8557ETE+T, start by checking the input voltage and output voltage with a multimeter. Ensure that the input voltage is within the specified range and that the output voltage is within the expected range. Check for any signs of overheating, such as excessive heat or a burning smell. If the issue persists, try replacing the device or consulting the datasheet and application notes for further guidance.
