MAX860ESA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX860ESA+ - DC/DC Charge Pump Adjustable Voltage Regulator, 1.5V to 5.5V in, -5.5V to -1.5V/100mA out, NSOIC-8

Download MAX860ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

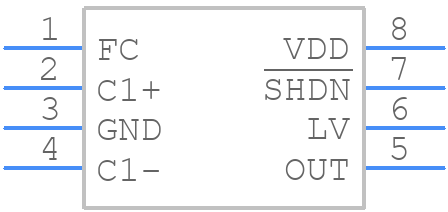

MAX860ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX860ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO (S8+4)
click to zoom
3D Models
MAX860ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO (S8+4)
click to zoom

MAX860ESA+ Details

  • Manufacturer Part Number:

    MAX860ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.06 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    130 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX860ESA+ Frequently Asked Questions (FAQs)

  • The MAX860ESA+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and EMI.
  • To optimize the performance of the MAX860ESA+, it is recommended to follow the application notes and design guidelines provided by Analog Devices Inc. Additionally, consider factors such as input voltage, output current, and operating frequency, and adjust the component values and layout accordingly.
  • The MAX860ESA+ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device temperature below 125°C. This can be achieved by providing adequate heat sinking, using a thermal pad, and ensuring good airflow around the device.
  • To troubleshoot issues with the MAX860ESA+, start by checking the input voltage, output voltage, and output current. Verify that the device is properly powered and that the input and output connections are correct. Use an oscilloscope to check for noise and oscillations, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • Yes, the MAX860ESA+ is compatible with lead-free soldering. However, it is recommended to follow the soldering guidelines provided by Analog Devices Inc to ensure reliable operation and to prevent damage to the device.
