MAX8614AETD+T - Analog Devices

Description: Switching Voltage Regulators Dual-Output (+ and -) DC-DC Converters for CCD

Download MAX8614AETD+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

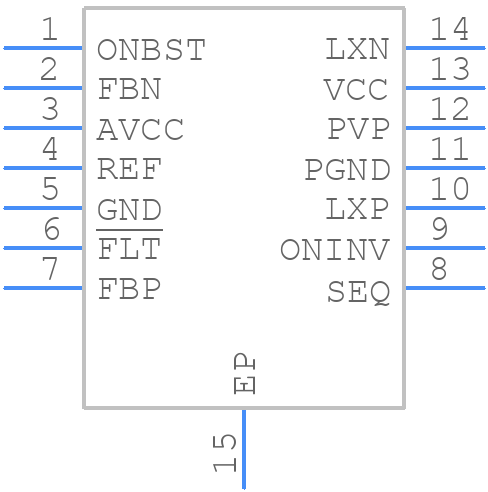

MAX8614AETD+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8614AETD+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1433+1
click to zoom
3D Models
MAX8614AETD+T - Analog Devices - 3D model - Small Outline No-lead - T1433+1
click to zoom

MAX8614AETD+T Details

  • Manufacturer Part Number:

    MAX8614AETD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.8 MM HEIGHT, LEAD FREE, MO-229, TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-04-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.52 A

  • Output Voltage-Max:

    24 V

  • Output Voltage-Min:

    -10 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1070 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX8614AETD+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX8614AETD+T involves keeping the device away from high-frequency noise sources, using a solid ground plane, and placing the device close to the photodiodes. Additionally, the layout should minimize parasitic inductance and capacitance. A detailed layout guide can be found in the MAX8614AETD+T evaluation kit documentation.
  • To optimize the MAX8614AETD+T for low-power operation, set the device to the lowest possible sampling rate, disable unnecessary channels, and use the lowest possible gain setting. Additionally, consider using the device's shutdown mode when not in use. The datasheet provides more information on power-saving features and modes.
  • The recommended method for calibrating the MAX8614AETD+T involves using a calibration coefficient stored in the device's internal memory or in an external EEPROM. The calibration coefficient is used to compensate for variations in the device's gain and offset. The datasheet provides more information on calibration procedures and coefficients.
  • To handle EMI when using the MAX8614AETD+T, use proper shielding, grounding, and layout techniques. Additionally, consider using EMI filters or shielding on the device's inputs and outputs. The datasheet provides more information on EMI considerations and mitigation techniques.
  • The maximum ambient light level that the MAX8614AETD+T can tolerate depends on the specific application and use case. However, in general, the device can tolerate ambient light levels up to 100,000 lux. The datasheet provides more information on ambient light tolerance and recommendations for optical filtering.
