MAX869LEEE+ - Analog Devices

Description: Maxim,MAX869LEEE+

Download MAX869LEEE+ Model
Schematic

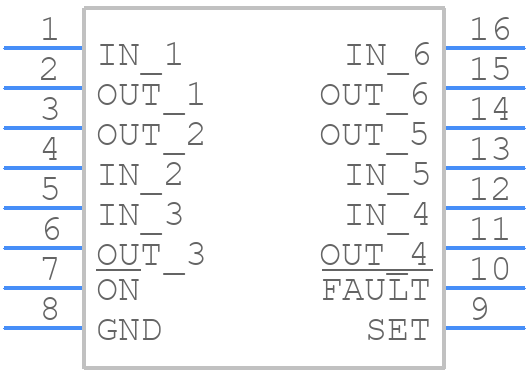

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX869LEEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 QSOP
click to zoom
3D Models
MAX869LEEE+ - Analog Devices  - 3D model - Small Outline Packages - 16 QSOP
click to zoom

MAX869LEEE+ Details

  • Manufacturer Part Number:

    MAX869LEEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-08-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    HTTP://PDFSERV.MAXIM-IC.COM/PACKAGE_DWGS/21-0055.PDF

  • Built-in Protections:

    OVER CURRENT; THERMAL

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    2 A

  • Output Peak Current Limit-Nom:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    MOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    30 µs

  • Turn-on Time:

    300 µs

  • Width:

    3.9 mm

MAX869LEEE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX869LEEE+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the device and the photodiode. Additionally, it's recommended to use a shielded cable for the photodiode connection and to avoid routing digital signals near the photodiode.
  • Calibration of the MAX869LEEE+ involves adjusting the LED current and gain settings to optimize the signal-to-noise ratio. This can be done by measuring the output voltage of the device with a known SpO2 value and adjusting the settings accordingly. It's also recommended to perform a dark current measurement to compensate for any ambient light interference.
  • The MAX869LEEE+ can tolerate ambient light intensities up to 10,000 lux, which is equivalent to direct sunlight. However, it's recommended to use an ambient light shield or filter to reduce the intensity to around 1,000 lux for optimal performance.
  • While the MAX869LEEE+ is optimized for use with the SFH 7050 photodiode, it can be used with other photodiodes that have similar characteristics. However, the device's performance may vary depending on the photodiode's sensitivity and spectral response. It's recommended to consult with Analog Devices' application engineers for guidance on using alternative photodiodes.
  • To implement the MAX869LEEE+ in a low-power design, it's recommended to use a low-power microcontroller, minimize the LED current, and use a power-down mode when not in use. Additionally, the device's power consumption can be reduced by using a lower clock frequency and optimizing the firmware to minimize the number of conversions.
