MAX8792ETD+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX8792ETD+T - PWM CONTROLLER, 26V, TDFN-14 T1433+1

Download MAX8792ETD+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

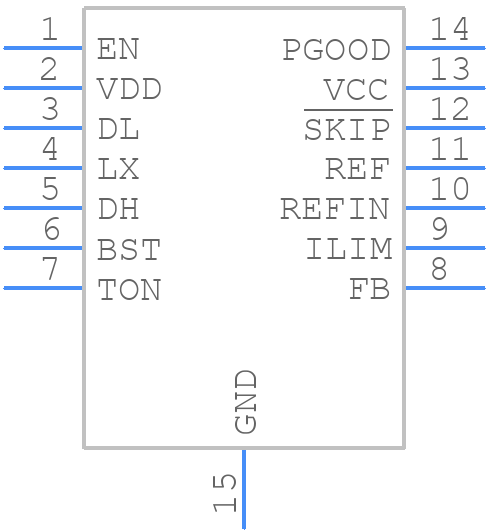

MAX8792ETD+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8792ETD+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1433+1
click to zoom
3D Models
MAX8792ETD+T - Analog Devices - 3D model - Small Outline No-lead - T1433+1
click to zoom

MAX8792ETD+T Details

  • Manufacturer Part Number:

    MAX8792ETD+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-04-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO HAS CONTROL TECHNIQUE OF PFM

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    23.4 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC14,.12,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX8792ETD+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8792ETD+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 1uF to 22uF. The capacitor values and types should be chosen based on the specific application requirements and operating conditions.
  • The MAX8792ETD+T is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation based on the ambient temperature to ensure reliable operation.
  • To ensure stability, it's essential to follow the recommended PCB layout and component selection guidelines, and to provide a stable input voltage and a low-impedance output. Additionally, the device's compensation pin (COMP) should be connected to a capacitor and resistor network as specified in the datasheet to ensure stability.
  • The MAX8792ETD+T is capable of delivering up to 2A of output current, but the maximum output current depends on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's power dissipation and thermal characteristics to ensure reliable operation.
