MAX8794ETB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX8794ETB+T - LDO Voltage Regulator, Adjustable, 1.1V to 3.6V input, 0.5V to 1.5V, TDFN-10

Download MAX8794ETB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

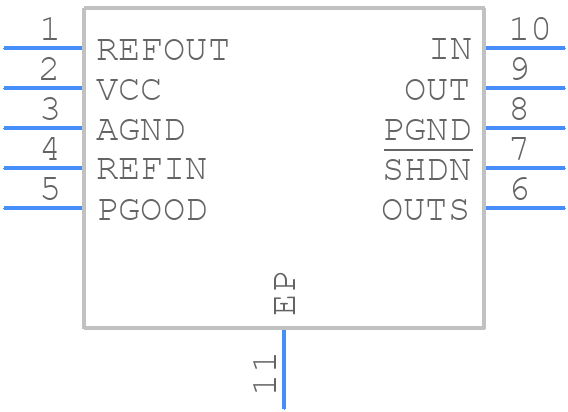

MAX8794ETB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8794ETB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1
click to zoom
3D Models
MAX8794ETB+T - Analog Devices - 3D model - Small Outline No-lead - T1033+1
click to zoom

MAX8794ETB+T Details

  • Manufacturer Part Number:

    MAX8794ETB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2006-08-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.105

  • Load Regulation-Max(%):

    3%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    1.5 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX8794ETB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX8794ETB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The output capacitor selection for the MAX8794ETB+T depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. The capacitor's ESR (Equivalent Series Resistance) should be low, typically < 10mΩ. X5R or X7R ceramic capacitors are good options.
  • The MAX8794ETB+T has an absolute maximum input voltage rating of 6V. However, the recommended input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum input voltage can damage the device.
  • The MAX8794ETB+T has a built-in overcurrent protection feature that limits the output current to a maximum of 2.5A. To implement overcurrent protection, connect a sense resistor (Rs) between the output pin and the GND pin. The value of Rs should be chosen such that the voltage across it during overcurrent conditions is between 50mV to 100mV. The device will then limit the output current to prevent damage.
  • The MAX8794ETB+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and derate the device's performance accordingly. Additionally, ensure that the PCB and surrounding components can handle the high temperatures.
