MAX887HESA+ - Analog Devices

Description: MAX887HESA+, DC-DC Converter, Adjustable, 1.25 to 10.5V, Step Down, 0.44MHz, 8-Pin SOIC

Download MAX887HESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

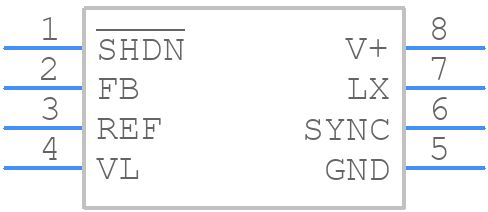

MAX887HESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX887HESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO (S8+4)-1
click to zoom
3D Models
MAX887HESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO (S8+4)-1
click to zoom

MAX887HESA+ Details

  • Manufacturer Part Number:

    MAX887HESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012A, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1996-09-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    11 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    7 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Nom:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX887HESA+ Frequently Asked Questions (FAQs)

  • The MAX887HESA+ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces separate. Additionally, it is recommended to use a 10uF ceramic capacitor between the VIN and GND pins to filter out noise.
  • The MAX887HESA+ has a adjustable output voltage range of 0.8V to 5.5V. To select the correct output voltage, consider the voltage requirements of your load, the input voltage range, and the desired output voltage accuracy. You can use the datasheet's output voltage selection table or the online calculator tool provided by Analog Devices to determine the correct output voltage setting.
  • The MAX887HESA+ has a maximum input voltage rating of 6.5V. However, it is recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • To ensure stability and prevent oscillation, it is recommended to use a minimum output capacitance of 10uF, use a low-ESR output capacitor, and keep the output voltage sense lines short and direct. Additionally, it is recommended to use a 1uF ceramic capacitor between the COMP and GND pins to filter out noise and improve stability.
  • The MAX887HESA+ has a maximum output current rating of 300mA. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It is recommended to consult the datasheet's electrical characteristics table and thermal derating curves to determine the maximum output current for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX887HESA+ Overview

Use the download button to access the MAX887HESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX88, or try a keyword search, such as Switching Regulator or Controllers
