MAX8902BATA/V+T - Analog Devices

Description: LDO Voltage Regulators Low-Noise 500mA LDO Regulators in a 2mm x 2mm TDFN Package

Download MAX8902BATA/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

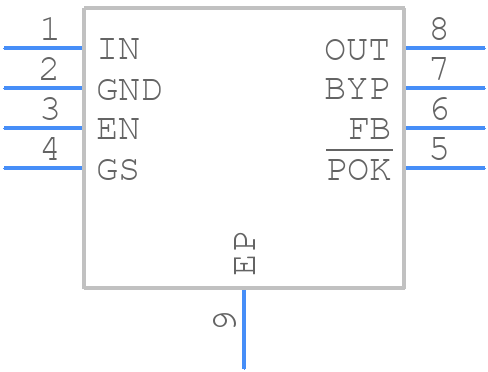

MAX8902BATA/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX8902BATA/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+1
click to zoom
3D Models
MAX8902BATA/V+T - Analog Devices - 3D model - Small Outline No-lead - T822+1
click to zoom

MAX8902BATA/V+T Details

  • Manufacturer Part Number:

    MAX8902BATA/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2007-11-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.12 V

  • Dropout Voltage1-Nom:

    0.15 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5.3 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX8902BATA/V+T Frequently Asked Questions (FAQs)

  • The MAX8902BATA/V+T requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it is recommended to place the device near the power source and to use a low-ESR capacitor for the output filter.
  • The selection of input and output capacitors for the MAX8902BATA/V+T depends on several factors, including the input voltage range, output voltage, and desired ripple and noise performance. It is recommended to use low-ESR capacitors with a high ripple current rating and a voltage rating that exceeds the maximum input voltage. The datasheet provides guidelines for capacitor selection, and it is also recommended to consult with capacitor manufacturers for specific recommendations.
  • The MAX8902BATA/V+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it is recommended to derate the device's performance and follow the thermal management guidelines provided in the datasheet.
  • The MAX8902BATA/V+T has a specific power-up and power-down sequence that must be followed to ensure proper operation. It is recommended to follow the power-up and power-down sequence provided in the datasheet, including ramping up the input voltage slowly and ensuring that the output voltage is stable before enabling the load.
  • The MAX8902BATA/V+T has a maximum output current capability of 2A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal performance of the device. It is recommended to consult the datasheet and perform thermal calculations to determine the maximum output current capability for a specific application.
