MAX893LESA+ - Analog Devices

Description: MAX893LESA+, Dual USB Power Switch, High Side, 160mΩ 2.7 V min., 8-Pin SOIC

Download MAX893LESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

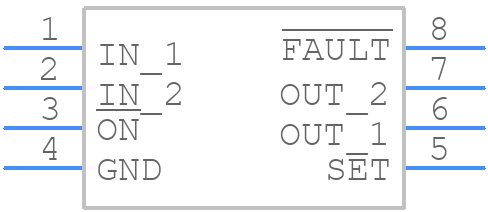

MAX893LESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX893LESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8L SOIC
click to zoom
3D Models
MAX893LESA+ - Analog Devices - 3D model - Small Outline Packages - 8L SOIC
click to zoom

MAX893LESA+ Details

  • Manufacturer Part Number:

    MAX893LESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-07-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX893LESA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX893LESA+ can be found in the MAX893LESA+ Evaluation Kit documentation, which provides a detailed layout guide and PCB design files. Additionally, Analog Devices provides a layout checklist in the datasheet to ensure proper placement of components and routing of signals.
  • To optimize the performance of the MAX893LESA+, it's recommended to follow the application notes and design guidelines provided by Analog Devices. Additionally, engineers can use simulation tools such as SPICE models and thermal simulation software to optimize the design. It's also recommended to consult with Analog Devices' technical support team for specific application guidance.
  • The MAX893LESA+ has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. The datasheet provides thermal resistance values and recommended thermal design guidelines. Engineers should also consider the operating temperature range and ensure that the device is operated within the recommended temperature range.
  • To troubleshoot issues with the MAX893LESA+, engineers can use the debug features built into the device, such as the fault monitoring and reporting capabilities. Additionally, Analog Devices provides a troubleshooting guide in the datasheet and application notes, which can help identify and resolve common issues. Engineers can also consult with Analog Devices' technical support team for further assistance.
  • The MAX893LESA+ is designed to meet EMI and EMC standards, but engineers should still take precautions to ensure compliance. The datasheet provides guidance on EMI and EMC considerations, including layout and shielding recommendations. Engineers should also follow industry-standard EMI and EMC design practices and consult with Analog Devices' technical support team for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX893LESA+ Overview

Use the download button to access the MAX893LESA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX89, or try a keyword search, such as Switching Regulator or Controllers
