MAX9004EUB+ - Analog Devices

Description: Operational Amplifiers - Op Amps Low-Power, High-Speed, Single-Supply Op Amp Comparator Reference ICs

Download MAX9004EUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

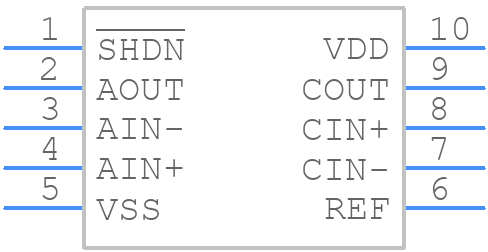

MAX9004EUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9004EUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2 _0
click to zoom
3D Models
MAX9004EUB+ - Analog Devices - 3D model - Small Outline Packages - U10+2 _0
click to zoom

MAX9004EUB+ Details

  • Manufacturer Part Number:

    MAX9004EUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    1998-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9004EUB+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX9004EUB+ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure proper operation.
  • To ensure the MAX9004EUB+ is properly biased, make sure to connect the VCC pin to a stable voltage source between 2.7V and 5.5V, and connect the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 0.5V to VCC - 1.5V.
  • The MAX9004EUB+ can handle input frequencies up to 100MHz. However, the device's performance may degrade at higher frequencies, and it's recommended to use a filter or a buffer stage to condition the input signal if it exceeds 50MHz.
  • The MAX9004EUB+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power consumption and ensure proper heat sinking to prevent overheating.
  • To troubleshoot issues with the MAX9004EUB+, start by verifying the power supply and input signal integrity. Check for proper biasing, and ensure that the input signal is within the recommended range. Use an oscilloscope to monitor the input and output signals, and check for any signs of oscillation or instability.
