MAX9013EUA+ - Analog Devices

Description: Maxim MAX9013EUA+ Comparator, TTL O/P, 4.5 → 5.5 V 8-Pin μMAX U8+1

Download MAX9013EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

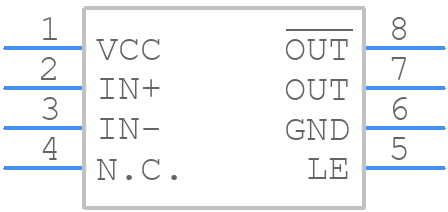

MAX9013EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9013EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8+1(H=1.1mm)
click to zoom
3D Models
MAX9013EUA+ - Analog Devices - 3D model - Small Outline Packages - U8+1(H=1.1mm)
click to zoom

MAX9013EUA+ Details

  • Manufacturer Part Number:

    MAX9013EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, MICRO MAX PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    2 µA

  • Input Offset Voltage-Max:

    5500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    5.5 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9013EUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX9013EUA+ involves keeping the input and output pins as close as possible to the device, using a ground plane to reduce noise, and placing decoupling capacitors close to the power pins. A 4-layer PCB with a solid ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To ensure stability, make sure to follow the recommended layout and placement, use a decoupling capacitor of at least 1uF between VCC and GND, and keep the input and output impedance matched. Also, avoid using long traces or wires that can cause oscillations. If oscillations occur, try adding a small capacitor (e.g., 10pF) between the output and GND.
  • The maximum input voltage that the MAX9013EUA+ can handle is 6V. Exceeding this voltage can cause damage to the device. If the input voltage exceeds 6V, consider using a voltage divider or a voltage regulator to reduce the voltage to a safe level.
  • The MAX9013EUA+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. If operating in a high-temperature environment, ensure that the device is properly heatsinked and follow the recommended derating guidelines.
  • To troubleshoot issues with the MAX9013EUA+, start by checking the power supply voltage, input and output signals, and decoupling capacitors. Use an oscilloscope to check for oscillations, noise, or signal distortion. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB. Refer to the datasheet and application notes for more troubleshooting tips.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9013EUA+ Overview

Use the download button to access the MAX9013EUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX90, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
