MAX9019EKA+T - Analog Devices

Description: Analog Comparators SOT23, Dual, Precision, 1.8V, Nanopower Comparators With/Without Reference

Download MAX9019EKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

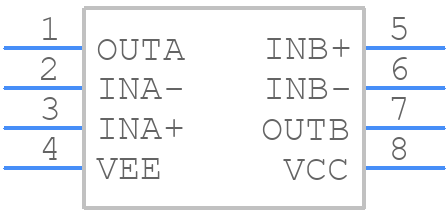

MAX9019EKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9019EKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+5
click to zoom
3D Models
MAX9019EKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+5
click to zoom

MAX9019EKA+T Details

  • Manufacturer Part Number:

    MAX9019EKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    MO-178, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2003-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Bias Current-Max (IIB) @25C:

    0.001 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    28000 ns

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.002 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX9019EKA+T Frequently Asked Questions (FAQs)

  • The MAX9019EKA+T is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the MAX9019EKA+T is properly biased and configured, it is recommended to follow the application circuit provided in the datasheet and to consult the device's evaluation board documentation. Additionally, it is recommended to consult with an experienced analog design engineer or to contact Analog Devices' technical support team for guidance on specific application requirements.
  • The MAX9019EKA+T is a high-power device, and thermal management is critical to ensure reliable operation. Key considerations include providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. It is also recommended to follow the thermal management guidelines provided in the datasheet and to consult with a thermal management expert if necessary.
  • To troubleshoot common issues with the MAX9019EKA+T, it is recommended to follow a systematic approach, including checking the device's power supply, input and output connections, and PCB layout. Additionally, it is recommended to consult the device's datasheet and application notes, as well as to contact Analog Devices' technical support team for guidance on specific issues.
  • Operating the MAX9019EKA+T beyond its recommended operating conditions can result in reduced performance, reliability, and lifespan. It is recommended to operate the device within its specified operating conditions to ensure optimal performance and reliability. If operation beyond the recommended conditions is necessary, it is recommended to consult with an experienced analog design engineer or to contact Analog Devices' technical support team for guidance.
