MAX9053AEUB+ - Analog Devices

Description: Micropower, Single-Supply, UCSP/SOT23 Comparator + Precision Reference ICs

Download MAX9053AEUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

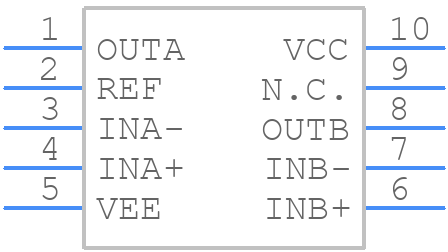

Symbol
MAX9053AEUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9053AEUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µSOP
click to zoom
3D Models
MAX9053AEUB+ - Analog Devices - 3D model - Small Outline Packages - 10 µSOP
click to zoom

MAX9053AEUB+ Details

  • Manufacturer Part Number:

    MAX9053AEUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.01 µA

  • Bias Current-Max (IIB) @25C:

    0.01 µA

  • Input Offset Voltage-Max:

    7000 µV

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    400 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.085 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX9053AEUB+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9053AEUB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to keep the signal traces short and direct.
  • The MAX9053AEUB+ requires a single 2.5V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power supply, and to ensure that the power supply is stable before applying any input signals. The power sequencing requirements are not critical, but it's recommended to power the device before applying any input signals.
  • The maximum input signal amplitude that the MAX9053AEUB+ can handle without saturating or distorting is typically around 5Vpp differential, but this can vary depending on the specific application and the impedance of the input signal. It's recommended to consult the datasheet and application notes for more information.
  • The MAX9053AEUB+ has a fixed gain of 1V/V, but it can be configured for different gain settings using external resistors. The available gain settings depend on the specific application and the required gain range. It's recommended to consult the datasheet and application notes for more information on how to configure the device for a specific gain setting.
  • The typical output impedance of the MAX9053AEUB+ is around 100 ohms. This output impedance can affect the output signal by causing it to be attenuated or distorted, especially if the output is driving a high-impedance load. It's recommended to consult the datasheet and application notes for more information on how to minimize the effects of output impedance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9053AEUB+ Overview

Use the download button to access the MAX9053AEUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX90, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
