MAX9077EKA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX9077EKA+T - Analogue Comparator, Ultra Small, Low Power, 2 Comparators, 580 ns, 2.1V to 5.5V, SOT-23, 8 Pins K8+2

Download MAX9077EKA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

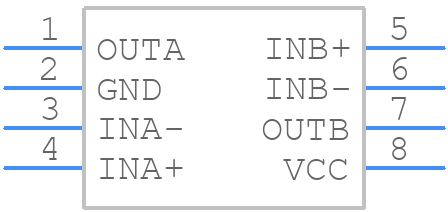

Symbol
MAX9077EKA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX9077EKA+T - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - K8+1
click to zoom
3D Models
MAX9077EKA+T - Analog Devices - 3D model - SOT23 (8-Pin) - K8+1
click to zoom

MAX9077EKA+T Details

  • Manufacturer Part Number:

    MAX9077EKA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOT_23-N/A

  • Package Description:

    ROHS COMPLIANT, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOT_23-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.02 µA

  • Bias Current-Max (IIB) @25C:

    0.02 µA

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    580 ns

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    0.0066 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX9077EKA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX9077EKA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • The MAX9077EKA+T requires a single 3.3V power supply, and it's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply is within the recommended operating range of 3.0V to 3.6V.
  • The MAX9077EKA+T can support clock frequencies up to 100 MHz, but it's recommended to operate the device at a clock frequency of 50 MHz or lower to ensure optimal performance and minimize power consumption.
  • The MAX9077EKA+T has a programmable input voltage range, and it can be configured using the VREF pin. The VREF pin sets the internal reference voltage, which determines the input voltage range. The device can be configured for different input voltage ranges by connecting the VREF pin to a voltage divider network or a voltage reference source.
  • The recommended operating temperature range for the MAX9077EKA+T is -40°C to +125°C, but the device can operate up to 150°C for short periods of time. It's recommended to operate the device within the recommended temperature range to ensure optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX9077EKA+T Overview

Use the download button to access the MAX9077EKA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX90, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
